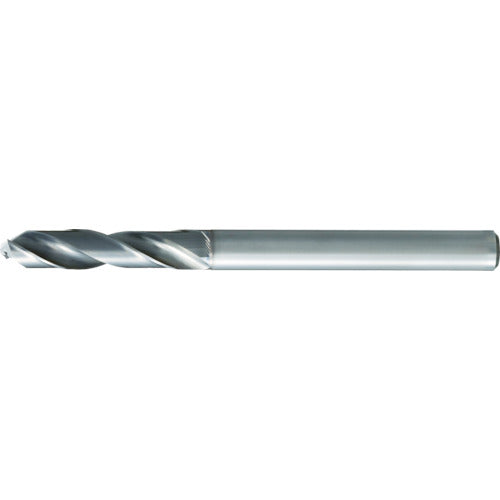

Omi OMI Strong Steel Drill (Short) 3D External Cooling OHDS-0100 1 Piece

Catalog number: OHDS-0100 Features: ●By adopting a unique cutting edge and groove shape, cutting chips are rounded compactly, achieving ideal chip discharge. ●OD coating with high durability and excellent lubricity enables long life and high efficiency machining. ●Short type with rigidity and long life. Applications: ●Cutting material: General structural steel, alloy tool steel, stainless steel, cast iron. Specifications: ●Blade diameter (mm): 10.0 ●Groove length (mm): 50 ●Total length (mm): 100 ●Shank diameter (mm): 10 ●Effective machining depth: 3D (blade diameter x 3 times) ●Twist angle (°): 30 ●Tip angle (°): 140 ●Surface treatment: OD coating ●Neck length (mm): 50 ●Lubrication type: External lubrication Material/Finish: ●Carbide alloy (K10)
