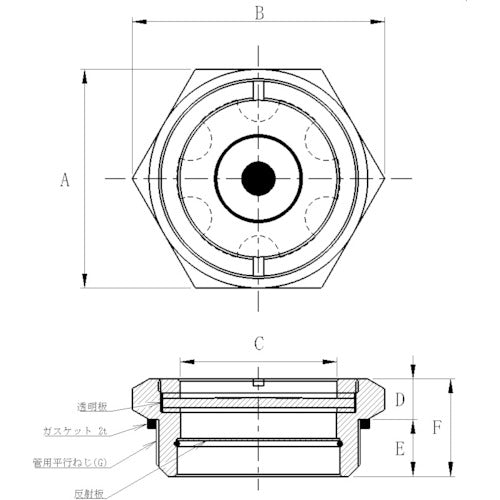

Catalog number: 10105000 Features: ● Made of metal, so there is no need to worry about breakage. ● The transparent plate on the liquid surface is made of polycarbonate resin and is heat resistant up to 130°C. Specifications: ● Thickness (mm): 20.5 ● Mounting screw diameter: G1-1/4 ● Pressure resistance (MPa): 1.5 (40°C) ● Heat resistance temperature (°C): 130 ● Two-sided width dimension (mm): 46 ● Width (mm): 53 ● A (mm): 46 ● B (mm): 53 ● C (mm): 33 ● D (mm): 8.5 ● E (mm): 12 ● F (mm): 20.5 ● Mounting screw diameter: Pipe parallel screw G1-1/4 Material/Finish: ● Body: Brass, nickel plating ● Transparent plate: Plastic
