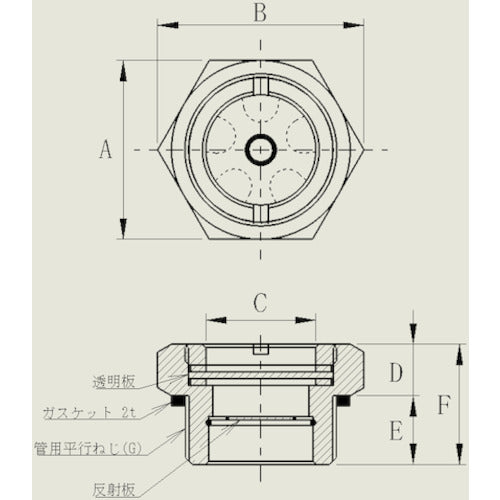

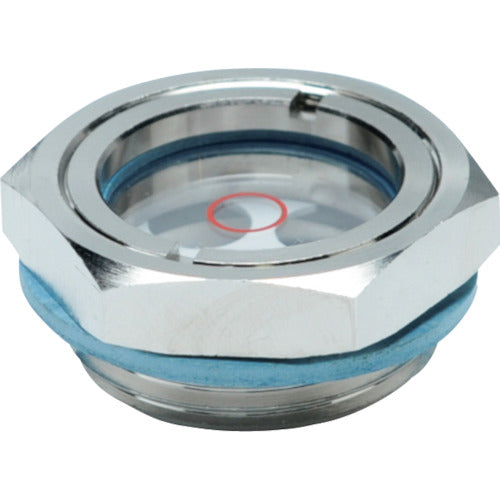

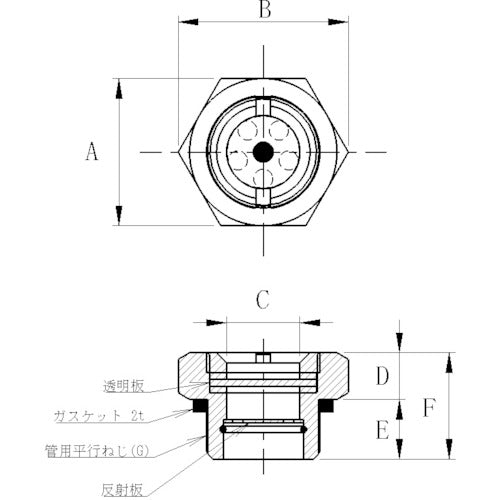

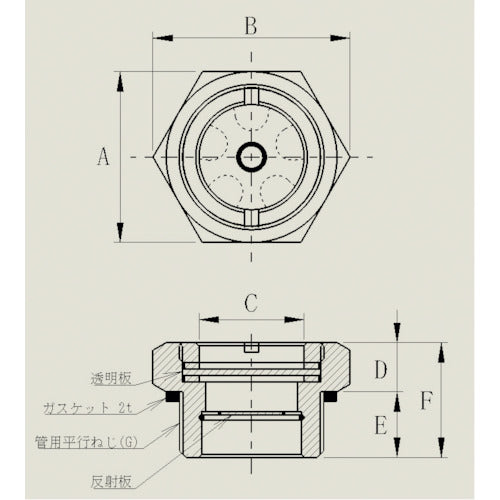

Catalog number: 10101000 Features: ● Made of metal, so there is no need to worry about breakage. ● The transparent plate on the liquid surface is made of polycarbonate resin and is heat resistant up to 130°C. Specifications: ● Thickness (mm): 16 ● Mounting screw diameter: G3/8 ● Pressure resistance (MPa): 1.5 (40°C) ● Heat resistance temperature (°C): 130 ● Two-sided width dimension (mm): 22 ● Width (mm): 25.5 ● A (mm): 22 ● B (mm): 25.5 ● C (mm): Φ11 ● D (mm): 7 ● E (mm): 9 ● F (mm): 16 ● Mounting screw diameter: Pipe parallel screw G3/8 Material/Finish: ● Body: Brass, nickel plating ● Transparent plate: Plastic
