Iehara Light Industry Oil Gauge MG Type 3/4 10113000 1 pc

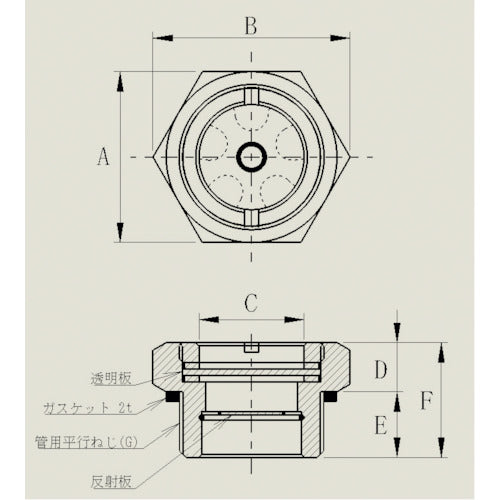

Catalog number: 10113000 Features: ● Made of metal, so there is no risk of breakage. ● The transparent plate on the liquid surface is made of heat-resistant glass and is heat-resistant up to 160°C. Specifications: ● Thickness (mm): 19.5 ● Mounting screw diameter: G3/4 ● Pressure resistance (MPa): 1.5 (40°C) ● Heat-resistant temperature (°C): 160 ● Two-sided width dimension (mm): 32 ● Width (mm): 37 ● A (mm): 32 ● B (mm): 37 ● C (mm): 20 ● D (mm): 9.5 ● E (mm): 10 ● F (mm): 19.5 ● Mounting screw diameter: Pipe parallel screw G3/4 Material/Finish: ● Body: Brass, nickel-plated ● Transparent plate: Heat-resistant glass
