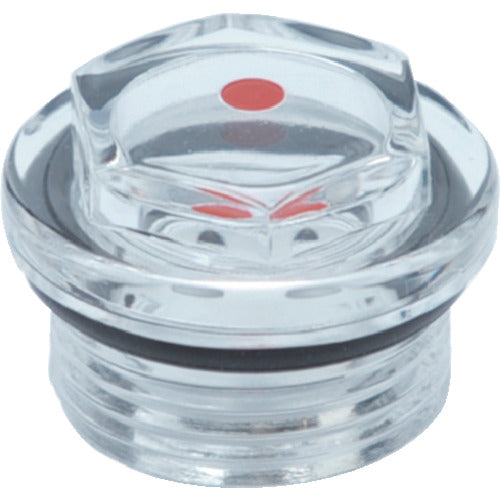

Iehara Light Industries Oil Gauge S-type 1/2 with O-ring groove 10202400 1 pc

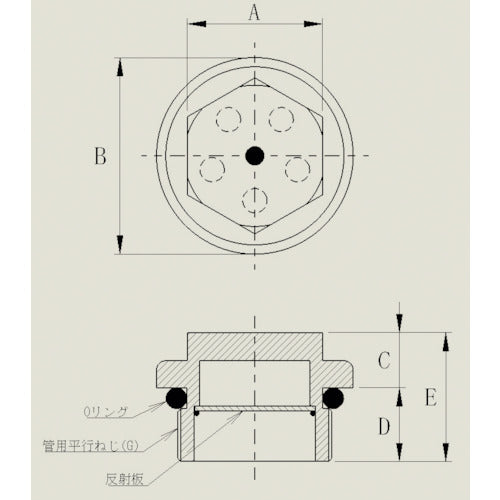

Catalog number: 10202400 Features: ● Transparent plastic makes it easy to see the oil level and the oil volume can be seen from the front and side. Specifications: ● Outer diameter (mm): 26.5 ● Thickness (mm): 18 ● Mounting thread diameter: G1/2 ● Pressure resistance (MPa): 0.8 (40℃) ● Heat resistance temperature (℃): 95 ● Two-sided width dimension (mm): 18.5 ● A (mm): 18.5 ● B (mm): 26.5 ● C (mm): 8 ● D (mm): 10 ● E (mm): 18 ● Mounting thread diameter: Pipe parallel thread G1/2 Material/Finish: ● Transparent plastic ● O-ring: NBR
