Iehara Light Industry Oil Gauge S-type 3/4 with O-ring groove 10203200 1 pc

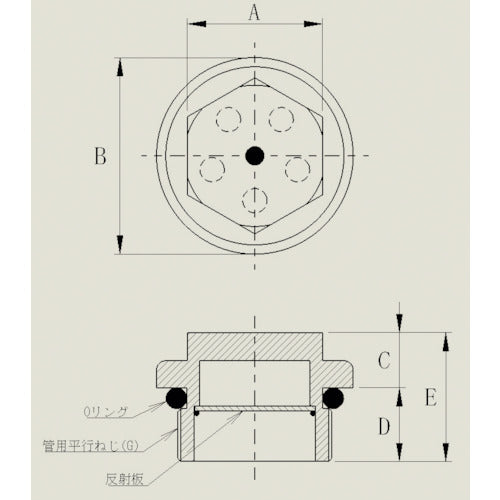

Catalog number: 10203200 Features: ● Transparent plastic makes it easy to see the oil level and the oil volume can be seen from the front and side. Specifications: ● Outer diameter (mm): 32 ● Thickness (mm): 21 ● Mounting thread diameter: G3/4 ● Pressure resistance (MPa): 0.8 (40℃) ● Heat resistance temperature (℃): 95 ● Two-sided width dimension (mm): 22 ● A (mm): 22 ● B (mm): 32 ● C (mm): 9 ● D (mm): 12 ● E (mm): 21 ● Mounting thread diameter: Pipe parallel thread G3/4 Material/Finish: ● Transparent plastic ● O-ring: NBR
