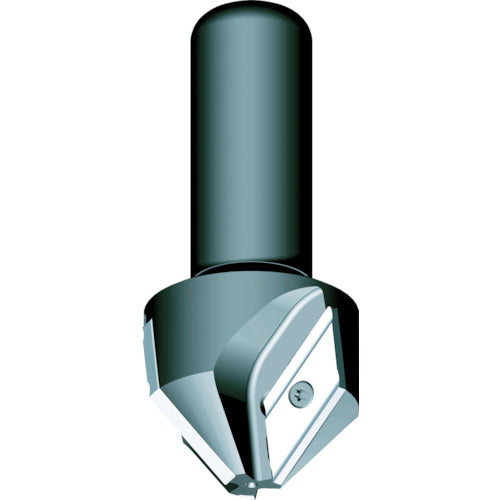

Fujigen Gentlemen 15° NK1571X 1 unit

Catalog number: NK1571X Features: ● Angle can be selected according to the application. ● High-rigidity chamfering cutter with throw-away 3-blade. ● Chamfering can be performed with a blade length of 30 mm. ● The unique chip breaker makes it easy to process difficult-to-cut materials such as SUS304. ● Chamfering up to 30 mm wide is possible (3 blades). Application: ● Chamfering. Specifications: ● Chamfering diameter (mm): 15.0-73.3 ● Number of blades (pieces): 3 ● Total length (mm): 135 ● Shank diameter (mm): 32 ● Number of blades: 3 ● Angle (°): 15 ● Dedicated tip: X63GUR ● Tip angle (°): 15 Material/Finish: ● Steel Set contents/Accessories: ● Clamp screw, wrench (tips sold separately)
