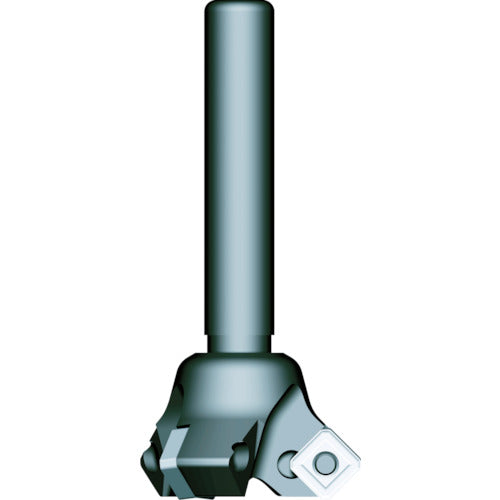

Fujigen Milling Tool Aeromill Shank φ12 Machining Diameter φ30 Positive Type ARP12-30S 1 Unit

Catalog number: ARP12-30S Features: ● Small diameter shank makes it ideal for use with low rigidity machines. ● By using the negative type and positive type depending on the workpiece, it is possible to process under more optimal conditions. ● We recommend using the negative type, which has excellent cutting edge strength and economy, for processing iron and steel, and the positive type, which emphasizes sharpness, for processing aluminum and stainless steel. Applications: ● Face mill processing. Specifications: ● Number of teeth CICT (pieces): 3 ● Cutting diameter DC (mm): 30 ● Overall length OAL (mm): 85 ● Compatible chip: S32MOZ/S32GUR ● Shank diameter (mm): 12 ● Type: Positive type ● Blade diameter (mm): 30 ● Number of teeth: 3 ● Number of teeth (pieces): 3 ● Overall length (mm): 85 ● Dedicated chip: S3H3MNZ/S3H3GNZ Material/Finish: ● Steel
