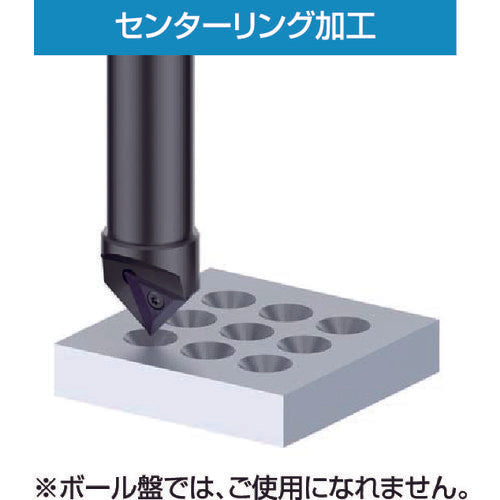

Fujigen Chamfering Cutter Dodeca Eco Shank Diameter 32mm EMD3230T 1 piece

Catalog number: EMD3230T Features: ●Three-cornered insert reduces machining costs. ●Improvements to insert shape and cutting edge specifications improve cutting performance and chip removal. ●AC16N material achieves a long life by applying a new coating to ultra-fine carbide particles. Specifications: ●Minimum chamfer diameter (mm): 1.2 ●Maximum chamfer diameter (mm): 43.5 ●Chamfering angle (°): 30 ●Blade diameter (mm): 45.0 ●Number of blades (pieces): 1 ●Total length (mm): 150 ●Shank diameter (mm): 32 ●Shank length (mm): 110 ●Shank size: 32 ●Compatible insert: TXMT270506 ●Number of blades: 1 ●Tip angle (°): 120
