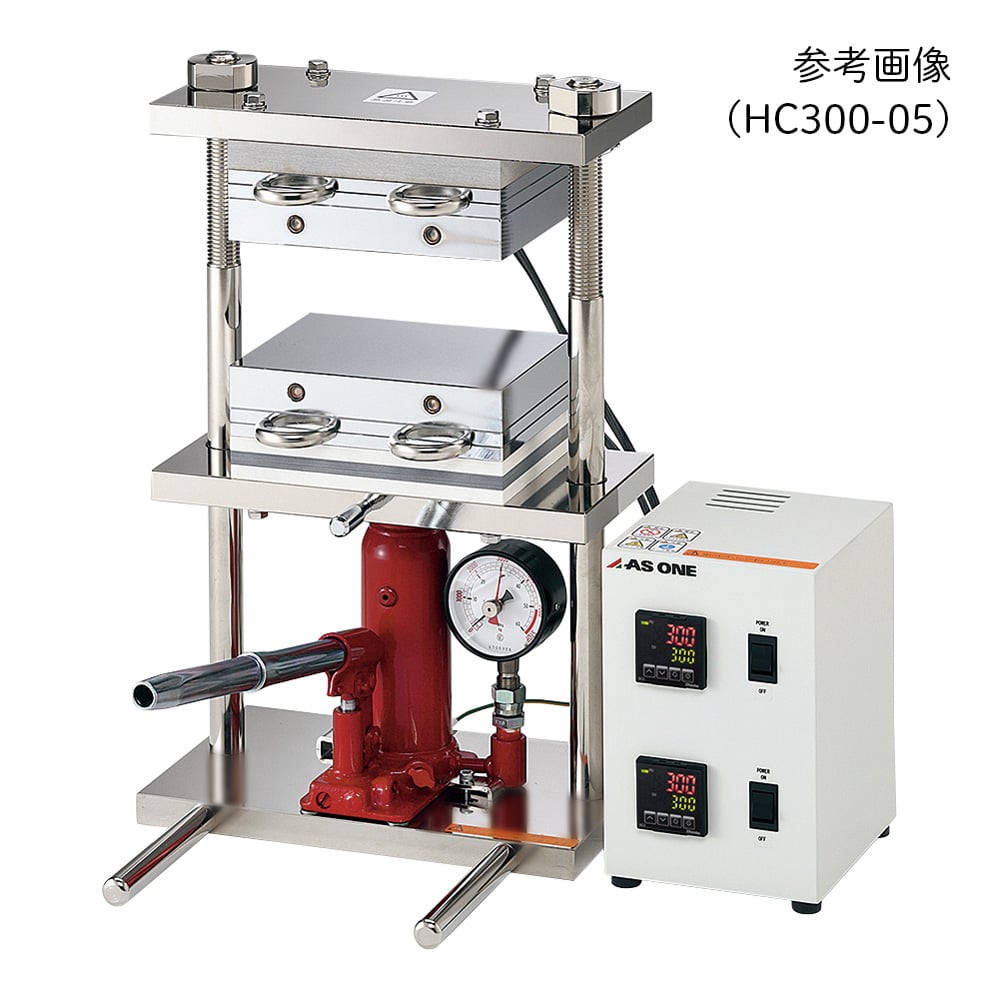

Small heat press machine (with cooling function) 1 to 15t HC300-15 1 unit

This is a heat press machine with a cooling function that is convenient for molding work. After heating and molding, the sample and mold can be cooled by circulating cooling water or tap water. The temperature of the upper and lower heating plates can be set separately. We can produce resin sheets and molded samples. We can perform heat compression molding tests on various materials. It operates hydraulically so loading is easy. The pressure gauge is a two-needle type, so you can check the applied pressure. Load (t): 0 to 15 Size (mm): 475 x 460 x 615 Weight (kg): Approx. 80 Heat plate size: 200 x 150 mm Heat plate stroke: 0 to 90 mm Heating temperature: maximum temperature 300℃ Heater capacity: 660W/heat plate x 2 Temperature control: PID method Pressure gauge with needle and analog display Power supply: AC100V 50/60Hz Power cord length: 2.5m (with 3P plug) *This product is water-cooled, but it cannot be cooled by itself. Be sure to use it with circulating tap water or cooling water. *Pressure cannot be maintained for long periods of time. *We recommend using a pressure of 50% or more of the maximum value. *We use wooden packaging (frames, pallets, etc.).
