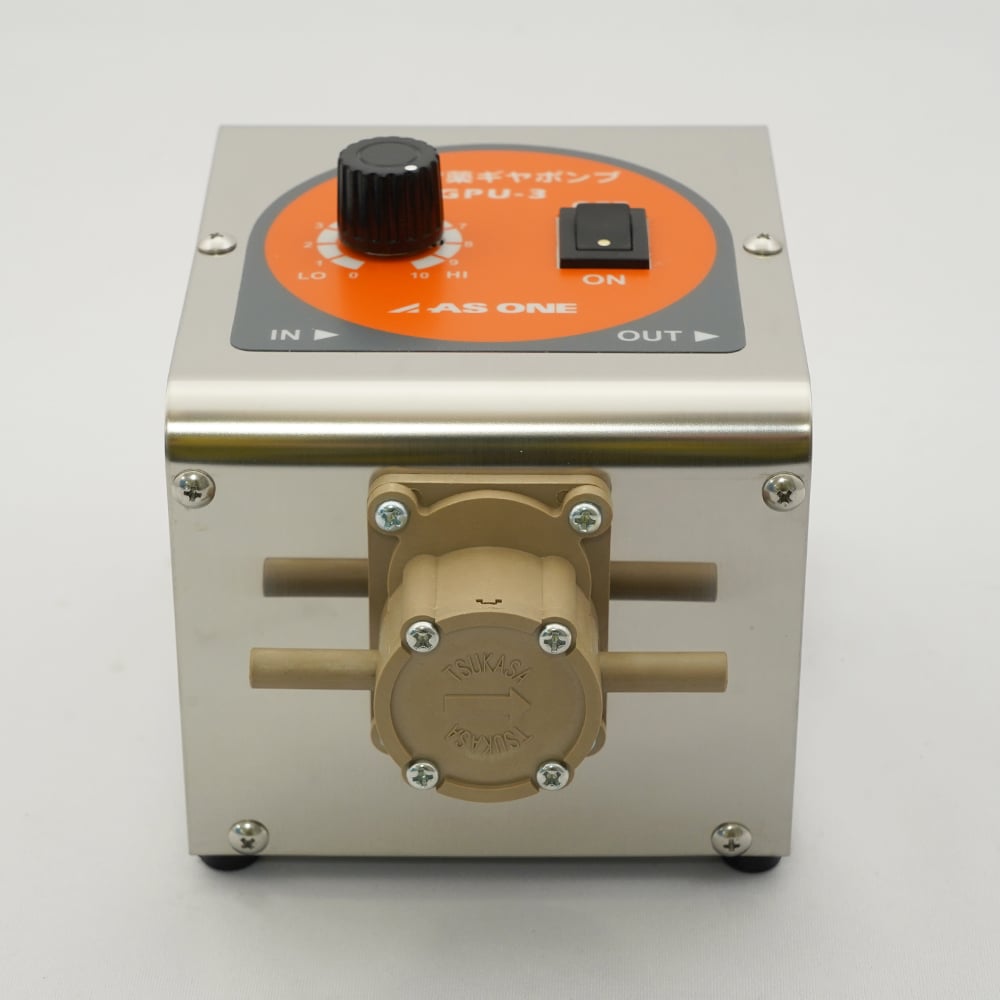

A small gear pump made from chemical-resistant engineering plastic.
Equipped with an electronically controlled rotation speed control circuit, it enables stable liquid transfer.
It has self-priming ability and can pump liquid without pulsation. Pump material: Liquid contact part: PPS (polyphenylene sulfide), seal part: NBR (nitrile rubber), shaft: stainless steel (SUS304)
Exterior material: Stainless steel (SUS304)
Hose connection part: Outer diameter φ6.4 x 19mm
Motor overcurrent protection function built in
Power supply: AC100V 50/60Hz (2P plug)
Weight: 880g
Discharge flow rate: 300~1300mL/min
Discharge pressure: 0.098MPa
Size: 100 x 147 x 106 mm
