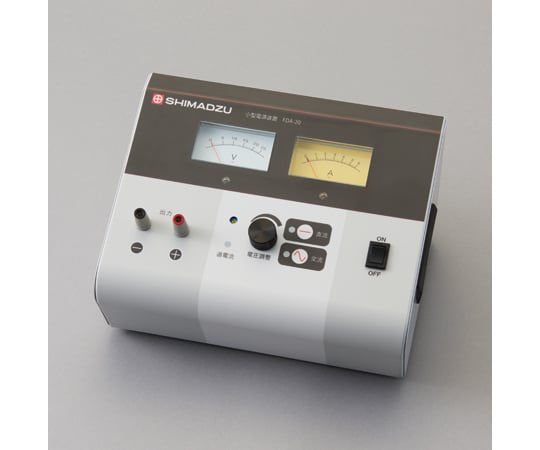

Small power supply FDA-20 138-190 1 unit

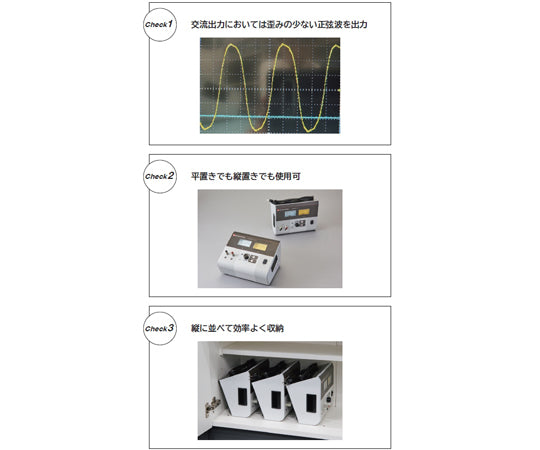

This is a standard model that outputs stable DC and AC. It has sufficient output capacity and is equipped with both DC and AC outputs, making it a power supply unit that is suitable for a wide range of experiments conducted in junior high and high school science classes. It has passed tests based on the Electrical Appliance and Material Safety Act, so you can use it with confidence. It has a handle and is lightweight (half the weight of conventional products), so even students can carry it. It can be laid flat and the control panel and meter surface are angled, making it easy for everyone in a group to carry out experiments. The AC output produces a sine wave with little distortion. When an overcurrent occurs, the output is automatically cut off and a buzzer and lamp sound to warn you. It can be used either flat or vertically. When stored, they can be arranged vertically for efficient storage on a shelf. Rated output voltage: DC 0-20V AC 0-20V Rated output current: DC 0~5A AC 0~5A AC output frequency: 55Hz Overcurrent protection: Input side: 5A fuse, Output side: Overcurrent protection circuit Rated input voltage: AC 100V 50/60Hz Rated input capacity: 135VA Size: W250×D180×H140mm Weight: 2.6kg Product code: 138-190
