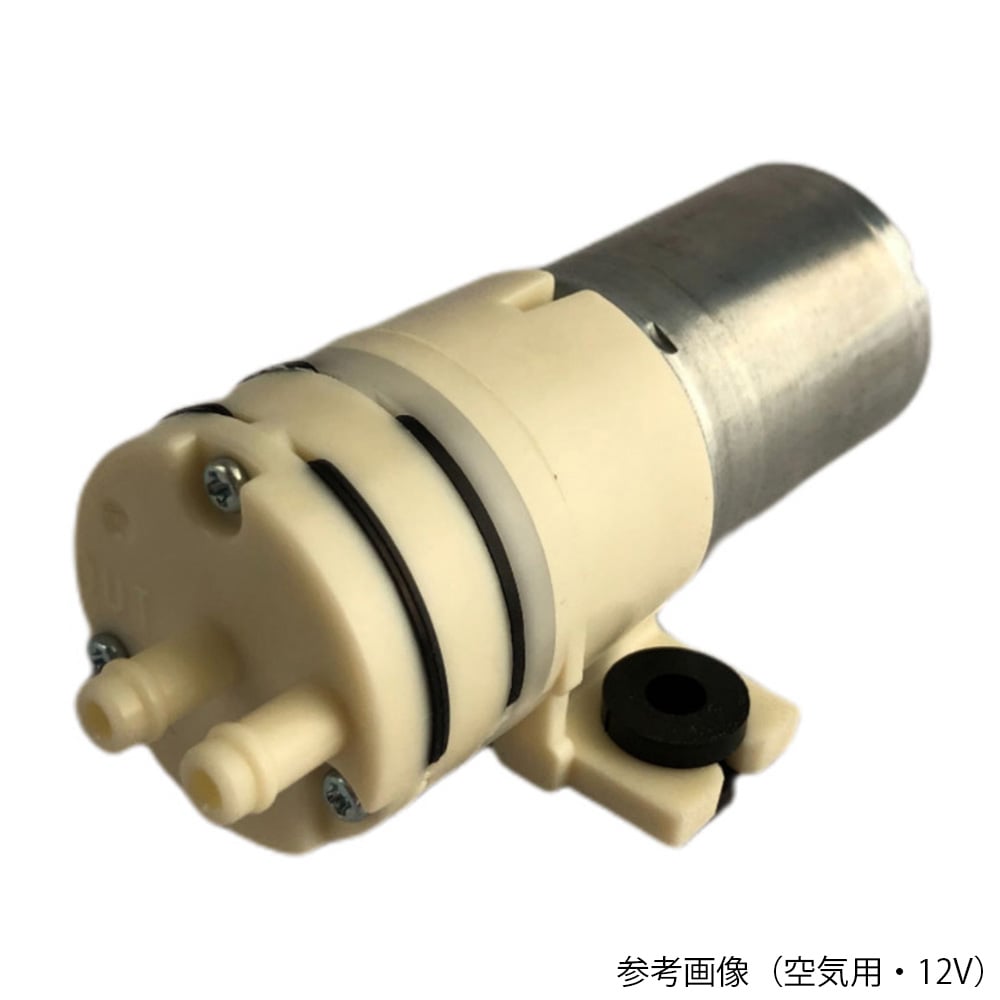

Small DC diaphragm pump for air 24V DSA-2FT-24 1 piece

Can be used as a discharge pump or a suction pump (self-priming). Applicable fluid: air Size: Φ27×62.3mm (excluding protrusions) Connection port: Φ5 (maximum nozzle outer diameter) x 8mm Wetted and gas-contacting parts material: Rubber (EPDM), resin (SPS) Durability*1: 200 hours or more Weight: 60g *1 Durability test: Rated voltage applied, ambient temperature 20 degrees, absolute pressure 101.3 KPa, relative humidity 65%, load 20 KPa (-20 KPa), total power supply time 10 seconds ON-5 seconds OFF. Rated voltage(V):24 Flow rate: Air/1.2L/min or more Vacuum attainment (kPa or less): -40 Maximum pressure (kPa or more): 90 Operating noise (below db): 50 Food hygiene: Not applicable
