島田電機(株)

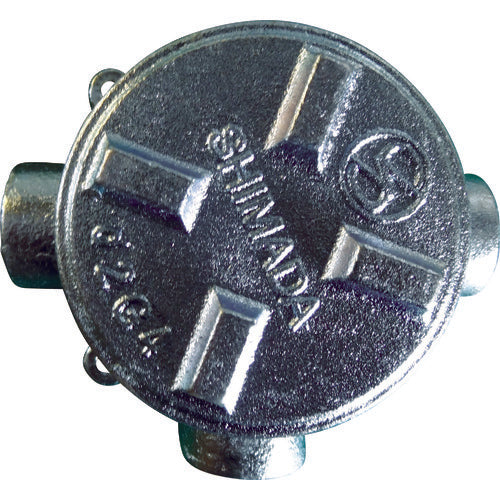

Shimada Cast Iron Explosion-Proof Junction Box PF1 SGT-28H 1 pc
Shimada Cast Iron Explosion-Proof Junction Box PF1 SGT-28H 1 pc
Regular price
¥8,237
Regular price
Sale price
¥8,237
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

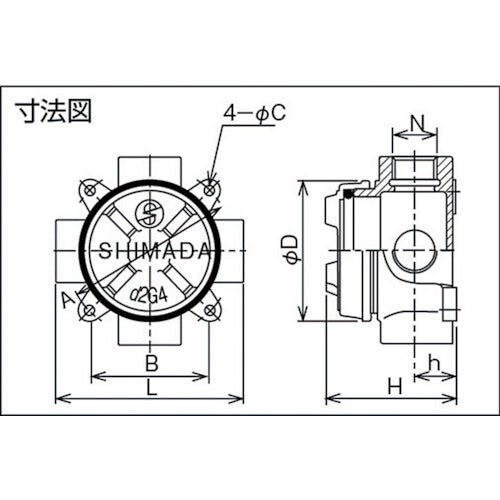

Catalogue number: SGT-28H Features: ●Can be used in Class 1 and 2 hazardous locations. ●An O-ring is placed in the cover, making it a highly waterproof product that can be used safely outdoors. Applications: ●Conduit pipe accessories for explosion-proof electrical work. ●For branching connections of electric wires. Specifications: ●N: PF1 ●A(mm): 120 ●Dimensions (mm) B: 85 ●C(mm): 6 ●D(mm): 100 ●h(mm): 30 ●H(mm): 94 ●L(mm): 134 ●Structural standard: d2G4 ●B(mm): 85 Material/Finish: ●Cast iron ●Surface treatment: Hot-dip galvanized
