Shimada Steel Explosion-proof Reducer PF3/4XPF1 SR22-28 1 pc

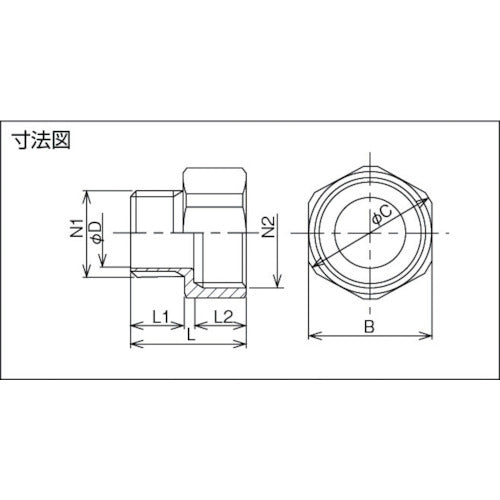

Catalogue number: SR22-28 Features: ●Can be used in Class 1 and 2 hazardous locations. Applications: ●Conduit accessories for explosion-proof electrical work. ●Used when the diameter of the electrical equipment or junction box inlet (hub) and the conduit are different. Specifications: ●Dimensions (mm) B: 38 ●C (mm): 41 ●D (mm): 20 ●L (mm): 40 ●N1: PF3/4 ●N2: PF1 ●L1 (mm): 16 ●L2 (mm): 20 ●Structural standard: d2G4 ●B (mm): 38 Material/Finish: ●Steel ●Surface treatment: Zinc plating
