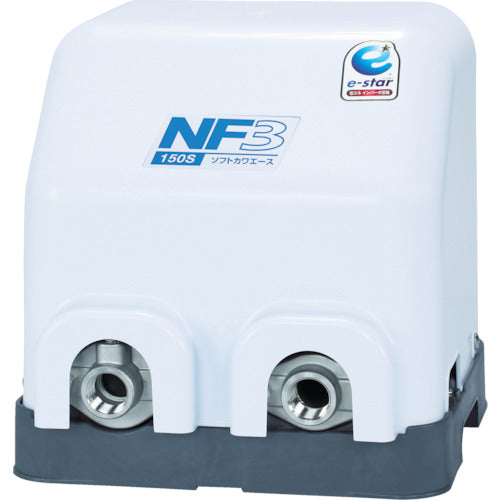

Kawamoto Domestic Inverter Well Pump (Soft Kawa Ace) NF3-750 1 unit

Catalog number: NF3-750 Features: ● Equipped with a variable operation mode function, it can switch between E (Eco) mode and S (Strong) mode. ● By controlling the pump speed with an inverter, it supplies water at a constant discharge pressure without being affected by the groundwater level. (Alternate and alternating parallel also allow for constant estimated end pressure.) ● Stainless steel is used for the main parts in contact with the liquid, making it durable and clean. Applications: ● For automatic water supply from a water tank or shallow well. Specifications: ● Discharge volume (L/min): 55 ● Total head (m): 28 ● Frequency (Hz): 50/60 ● Caliber (mm): 32 ● Power supply (V): Three-phase 200 ● Output (W): 750 ● Output (kW): 0.75 ● Overall width (mm): 385 ● Overall length (mm): 375 ● Overall height (mm): 415 ● Liquid quality: Clean water 0 to 40°C (no freezing) ● Power cord length (m): 2 ● Motor: Sensorless KPM motor (IE5 equivalent totally enclosed fan-cooled: DC brushless), single-phase 100V (150W, 250W, 400W), single-phase 200V (400W, 750W), three-phase 200V (400W, 750W) Material/Finish: ●Impeller: CAC406 (BC6) ●Main shaft: SUS304 (liquid contact parts) ●Casing: SCS13 Set contents/Accessories: ●Fine sensor ●Accumulator ●Base ●Cover ●Companion flange ●Strainer ●Earth rod ●Power cord
