iRay

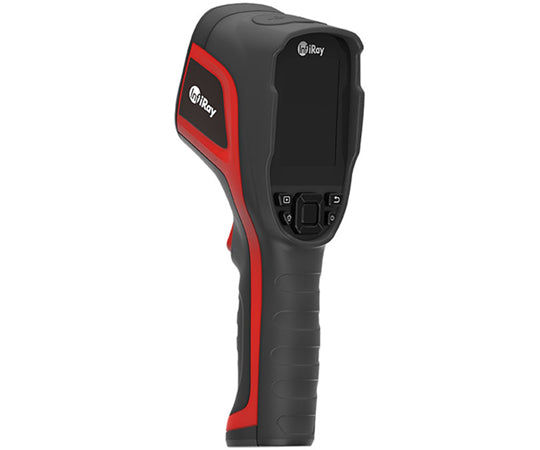

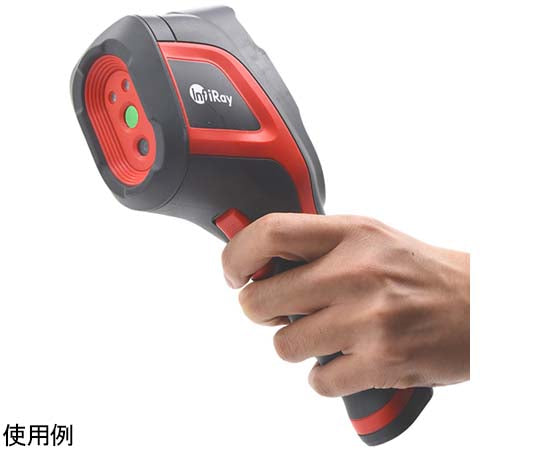

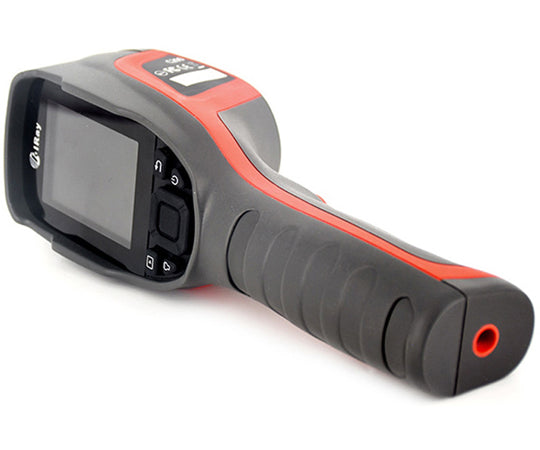

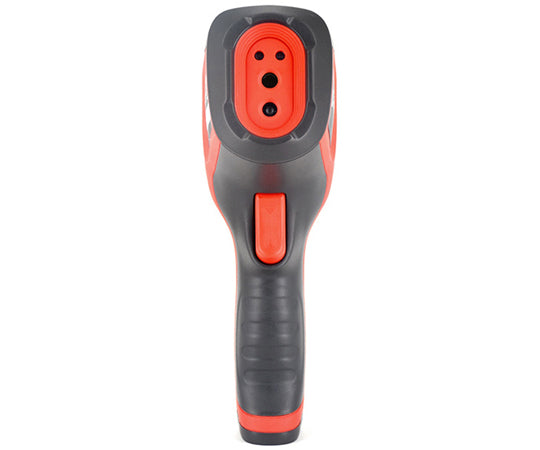

1 x Industrial Infrared Thermal Multi-Vision Thermometer C200PRO
1 x Industrial Infrared Thermal Multi-Vision Thermometer C200PRO
Regular price
¥91,850
Regular price
Sale price
¥91,850
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Professional-grade infrared detector: 256x192 resolution 2M pixel visible light sensor combined with Matrix III intelligent algorithm processing provides low lag display, allowing you to detect even the slightest temperature difference or small points.

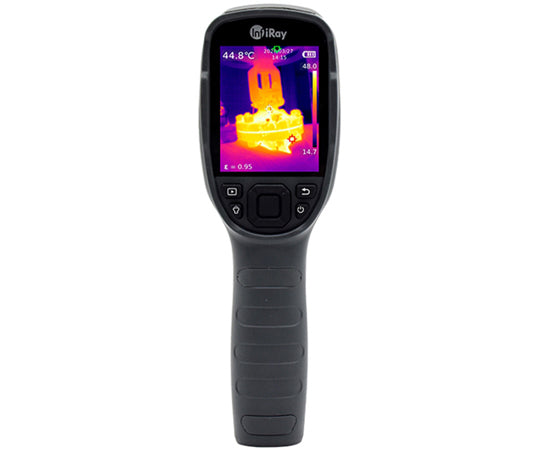

Various display modes: 7 color palettes and 5 display modes: thermal image only, thermal image + normal image, picture-in-picture, normal image, and iMix.
56° FOV: Focus-free design and wide viewing angle. Supports measurement of 10 square meters at a distance of 1m. Easily measure in limited indoor spaces or in narrow, complicated areas inside facilities.
Built-in professional-grade image processing system: For professional users, it supports interval timer shooting and auto alert shooting when the temperature exceeds or falls below the set value, making it easy to find abnormal temperatures and also supports further analysis on PC.
Long-lasting operation of 15 hours: 4 hours of charging via USB Type-C provides up to 15 hours of operation. Not only does it eliminate the need for a dedicated charger, it also eliminates the worry of running out of battery. Display language: Japanese/English, etc.
Detector resolution: 256x192
Pixel size: 12um
NETD: <40mK
Focal length: 3.2mm
FOV: 56°x42°
IFOV: 3.8mrad
Focus mode: Focus-free
Temperature measurement mode: Center of screen, highest point, lowest point, 3 custom points
Measurement range: -20℃-+550℃
Accuracy: ±2°C or ±2% of reading
Minimum reading unit: 0.1℃
Emissivity: 0.01-1.0, adjustable
Frame rate: 20Hz
Light: Built-in LED light
Display Mode: Thermal image, Thermal + normal image, normal image, PIP, iMix
Thermal display palette: 7 types
Alarm: Alarm can be set when the temperature exceeds or falls below a set value
Auto Alarm Snapshot: Allows you to take a snapshot when an alarm occurs.
Interval timer: Allows you to take snapshots at set intervals.
USB video transfer: allows transfer of real-time temperature data
Display size: 2.8 LCD (320x240)
Memory card: MicroSD compatible (up to 16GB)
Battery: Built-in lithium-ion rechargeable battery
Power supply: Rechargeable via USB-C.
Charging time: 4 hours
Operating time: 15 hours
Protection rating: IP54
Drop resistance: 2m
Size: 237 x 75 x 92 mm
Weight: 520g
PC Temperature Analysis Software TAS (Japanese display)
