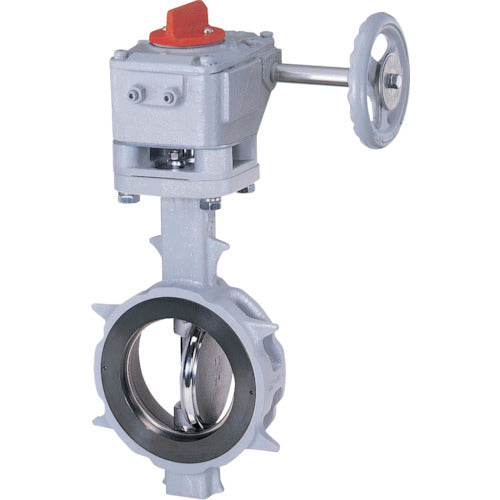

Tomoe Butterfly Valve JIS10K/150A 304YA-2U SCS13A/SCS13A/R-PTFE Gear 304YA-2U-150-SR 1 unit

Catalog number: 304YA-2U-150-SR Features: ●Complies with JIS and ISO face-to-face specifications. ●Double eccentric structure. ●Uses a self-aligning valve body. ●Uses PTFE for the seat ring, which is compatible with chemical fluids. ●Also suitable for cold and hot water supply. Applications: ●General construction. ●Industrial use. Specifications: ●Nominal diameter A: 150 ●Nominal diameter B: 6 ●Height (mm): 451 ●d (mm): 163 ●D (mm): 211 ●L (mm): 57 ●Applicable flange standard: JIS10K ●Maximum allowable pressure: 1.0MPa ●Operating temperature range: -29 to 200°C Materials/Finish: ●Body: Stainless steel (SCS13A) ●Valve body: Stainless steel (SCS13A) ●Seat ring: Fluorine resin (PTFE)
