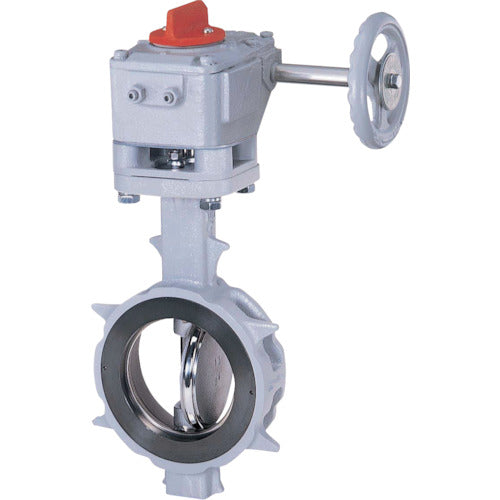

Tomoe Butterfly Valve JIS10K/65A 304YA-2U SCS13A/SCS13A/R-PTFE Gear 304YA-2U-65-SR 1 unit

Catalog number: 304YA-2U-65-SR Features: ●Complies with JIS and ISO face-to-face specifications. ●Double eccentric structure. ●Uses a self-aligning valve body. ●Uses PTFE for the seat ring, which is compatible with chemical fluids. ●Also suitable for cold and hot water supply. Applications: ●General construction. ●Industrial use. Specifications: ●Nominal diameter A: 65 ●Nominal diameter B: 2 1/2 ●Height (mm): 303 ●d (mm): 73 ●D (mm): 115 ●L (mm): 46 ●Applicable flange standard: JIS10K ●Maximum allowable pressure: 1.0MPa ●Operating temperature range: -29 to 200°C Materials/Finish: ●Body: Stainless steel (SCS13A) ●Valve body: Stainless steel (SCS13A) ●Seat ring: Fluorine resin (PTFE)
