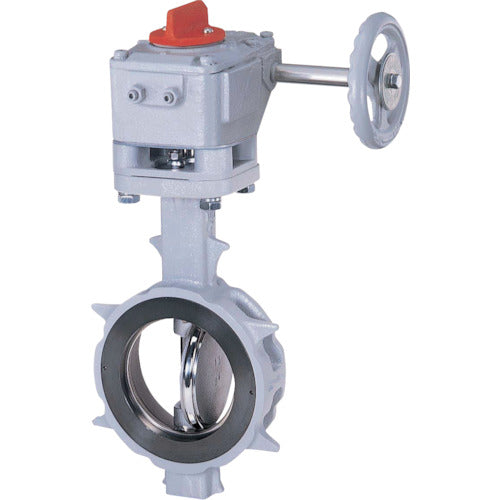

Tomoe Butterfly Valve JIS10K/80A 304YA-2U SCS13A/SCS13A/R-PTFE Gear 304YA-2U-80-SR 1 unit

Catalog number: 304YA-2U-80-SR Features: *Complies with JIS and ISO face-to-face specifications. *Double eccentric structure. *Uses self-aligning valve body structure. *Uses PTFE seat ring for chemical fluids. *Also suitable for cold and hot water supply. Applications: *General construction. *Industrial use. Specifications: *Nominal diameter A: 80 *Nominal diameter B: 3 *Height (mm): 318 *d (mm): 87 *D (mm): 127 *L (mm): 46 *Applicable flange standard: JIS10K *Maximum allowable pressure: 1.0MPa *Operating temperature range: -29 to 200°C Materials/Finish: *Body: Stainless steel (SCS13A) *Valve body: Stainless steel (SCS13A) *Seat ring: Fluorine resin (PTFE)
