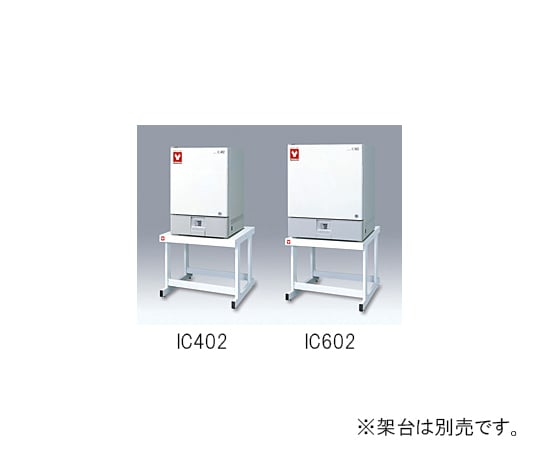

Incubator IC602 x 1

This air jacketed natural convection incubator is equipped with a temperature controller with a dedicated operation menu key, allowing for quick setting. The air jacket system ensures uniform temperature distribution. The double door structure reduces heat loss and maintains a stable constant temperature. The inner door is made of tempered glass, allowing for internal observation. Easy-to-operate constant value operation, quick auto-stop operation, auto-stop operation, and auto-start operation are possible. Digital setting method using dedicated operation menu keys and ▲▼ keys. Set temperature, measured temperature, and overheat prevention set temperature are displayed simultaneously. Calibration offset settings, key lock settings, and overheat prevention temperature settings are possible. It has a full range of safety features, including self-diagnosis circuits (temperature sensor abnormality, heater disconnection, SSR short circuit, memory abnormality, internal communication abnormality, temperature input circuit abnormality, automatic overheat prevention function), overheat prevention device, and overcurrent leakage breaker. (Note) If a heat-generating sample is placed in the device, the temperature may not be controlled properly. Method: Air jacket natural convection Operating temperature range: Room temperature +5 to 80°C Temperature control accuracy: ±0.5℃ (at 37℃) Temperature distribution accuracy: ±1.0℃ (at 37℃) Inner tank dimensions (width x depth x height mm): 600 x 530 x 500 External dimensions (width x depth x height mm): 710 x 656 x 870 Capacity: 159L Shelf load capacity: Approx. 15 kg/sheet Number of shelves: 13 Shelf support pitch: 30mm Power supply (50/60Hz): AC100V Code number: 211196
