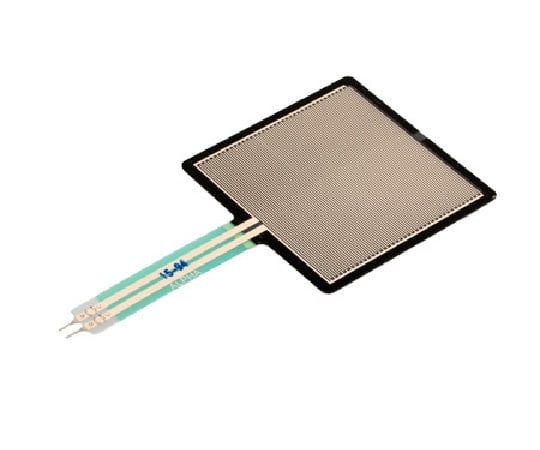

Pressure sensor (square) ALPHA-MF02-N-221-A01 1 piece

This is a sensor whose resistance value changes when pressure is applied. The resistance value is 20MΩ or more when no pressure is applied, but the resistance value decreases when pressure is applied. The sensor part is square, and the pressure-sensitive area is approximately 4 cm x 4 cm. Pressure-sensitive range Approx. 30 to 1000g (0.3 to 9.8N) Pressure Sensitive Area 39.6mm x 39.6mm Measurement Error ±5% (error between the same products ±20%) Base Resistance 20MΩ or higher Reaction rate ～1ms Operating temperature -20℃～+70℃ Product Life 1 million times
