This is a robust vacuum desiccator made from a single piece of polycarbonate.
The seal between the door and the main body uses a highly airtight silicone gasket, eliminating the need for grease or other products.
The vacuum gauge and valve can be installed either on the top or right side of the main body.
The main body can also be stacked in two layers. External dimensions (mm): 360 x 390 x 385
Internal dimensions (mm): 308 x 310 x 308
Quantity: 1 piece
Material: Polycarbonate
Allowable vacuum level: Approx. 133 Pa (1 Torr)
Number of shelves: 5
Capacity: Maximum 32L
Load capacity: Main unit: approx. 50 kg, shelf: approx. 5 kg
Weight: Approx. 13kg
Accessories: Vacuum valve (Φ8mm nipple, base R1/4) x 2, vacuum gauge x 1, shelf x 2

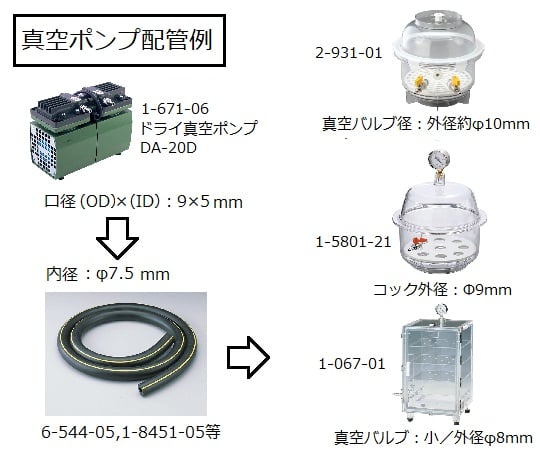

Recommended vacuum pump: 1-4148-03/DTC-41, 1-4148-11/DTC-22
