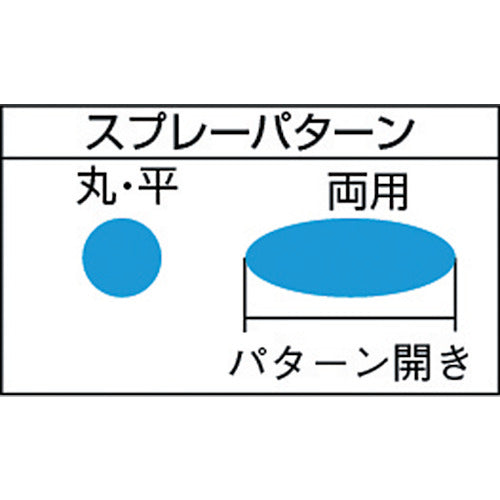

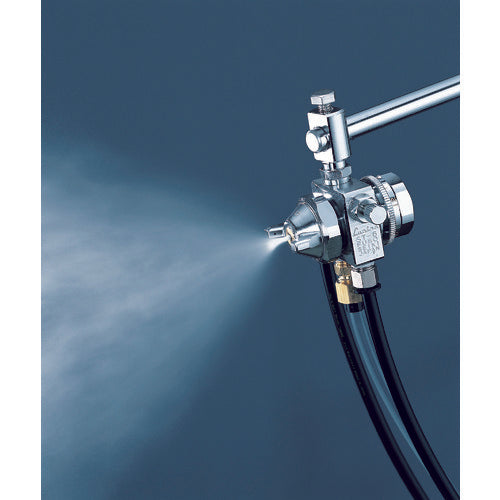

Catalog number: ST-5-1.0 Features: ● Atomization type that sprays a fine mist. Applications: ● Painting, humidification, and more. Specifications: ● Nozzle diameter (mm): 1.0 ● Attachment port (air/liquid): G1/8 ● Liquid spray volume (ml/min): 0-210 ● Pattern opening (mm): 360 ● Maximum pattern opening (mm): 360 ● Average particle size (μm): 15 ● Particle size (μm): 15 ● Uses one air hose ● Common type for atomizing air and piston operating air Material/Finish: ● Body: Chrome-plated brass ● Nozzle/Needle: Stainless steel (SUS303) Notes: ● Calculated at maximum pattern opening and spray distance of 30 cm. ● Particle size is calculated at a spray distance of 20 cm.
