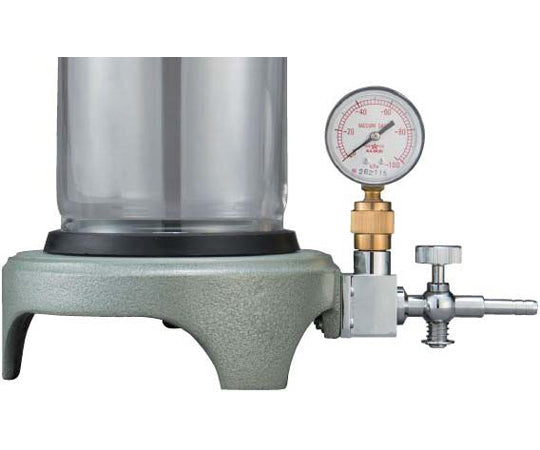

Exhaust panel EB-200 126-411 1 unit

126-401 Exhaust Panel Components The exhaust panel surface is made of cast iron with a flat, ground, thick, hard glass plate attached with a special adhesive, so there is no need to worry about rust or scratches. With a pressure gauge, you can easily read the vacuum level. The screw hole in the center of the exhaust panel is compatible with the screw on the nozzle of the VF-100N Vacuum Drop Experiment Apparatus. Comes with a three-way cock for convenient exhaust and intake. Exhaust panel: Diameter (exhaust panel surface) φ200mm Pressure gauge: 0 to -100kPa with three-way cock Adapter diameter: φ10mm Product code: 126-411
