シンワ測定株式会社

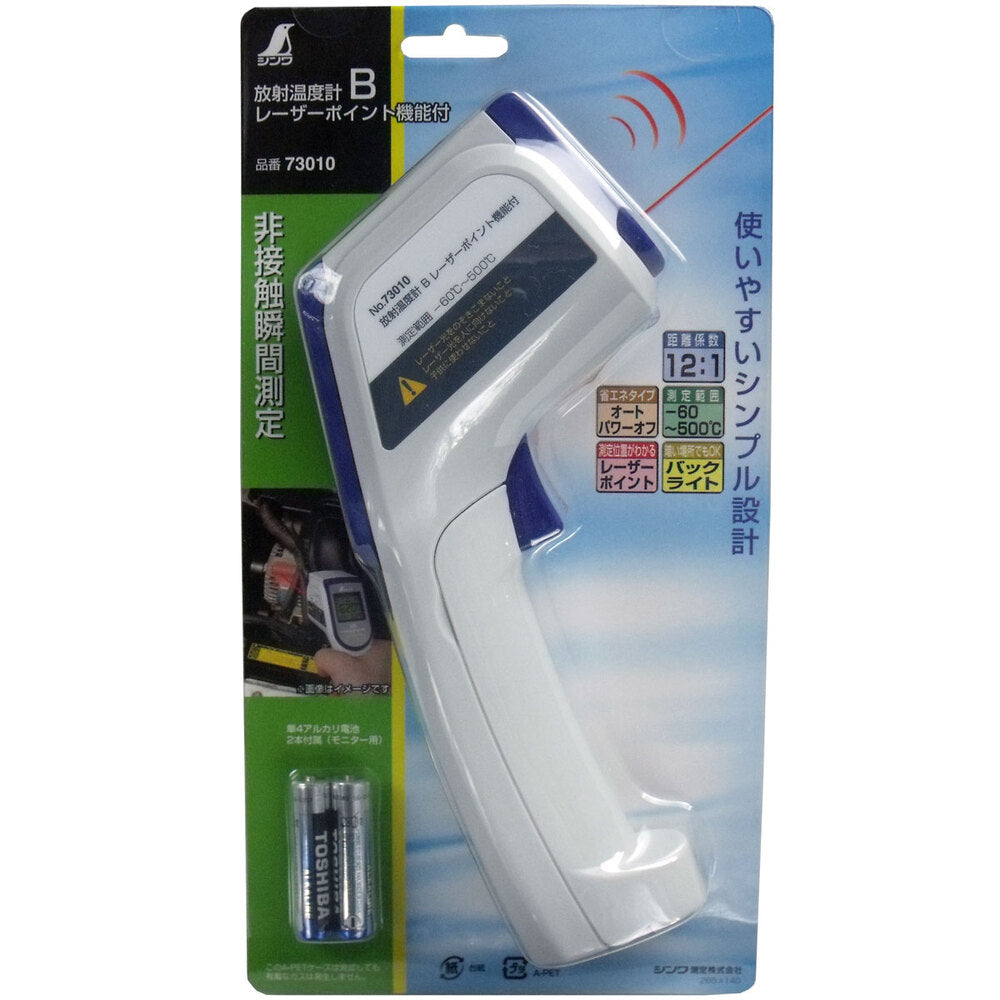

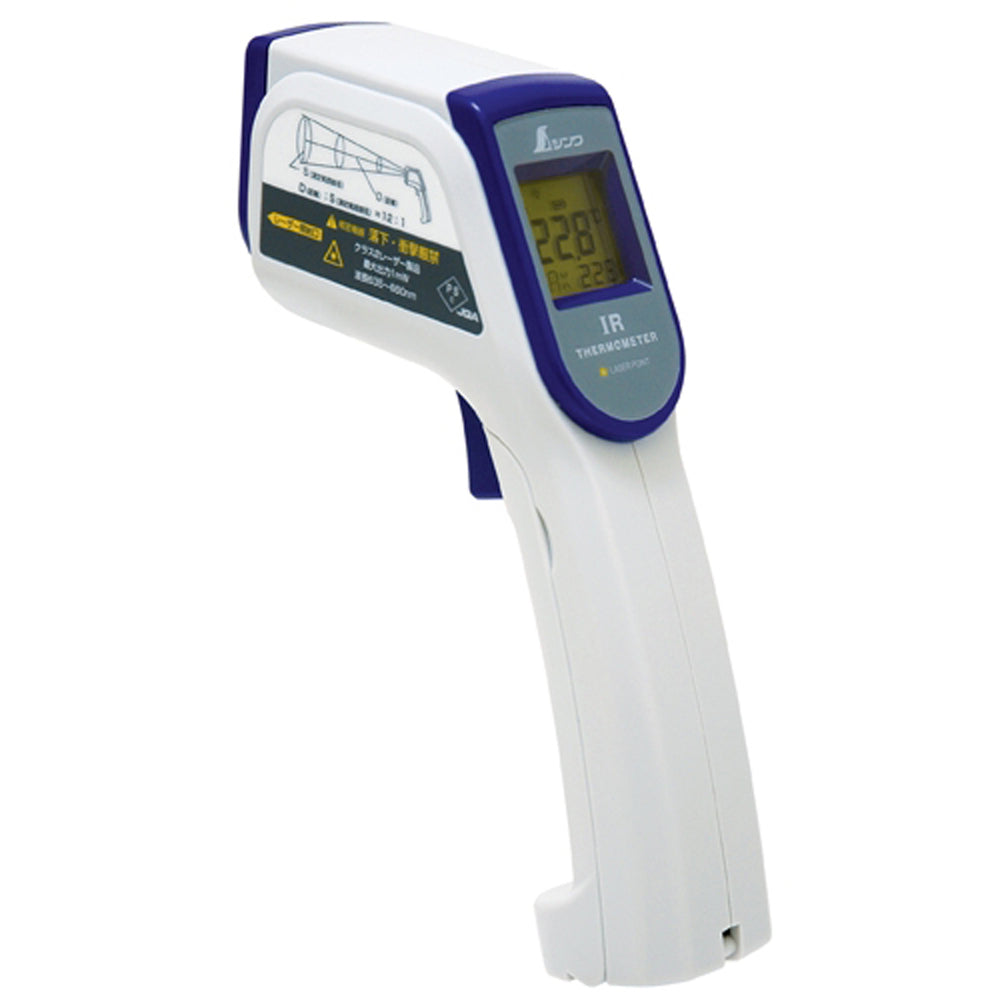

Radiation thermometer B Non-contact thermometer with laser point function 1 piece
Radiation thermometer B Non-contact thermometer with laser point function 1 piece
Regular price
¥7,150
Regular price
Sale price
¥7,150
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Non-contact instant measurement! Easy to use, simple design
Distance factor: 12:1.
- Energy saving type...Auto power off.
・Measurement range: -60 to 500 degrees.
・You can see the measurement position...laser point.
・Backlight for use in dark places.
・This is a radiation thermometer that instantly measures temperature without touching the object being measured.
- Equipped with a laser point function, the measurement position can be seen at a glance.
-It has a backlight so it can be read even in dark places.
- The distance coefficient is large, D:S = 12:1, so the measurement range can be narrowed down to distant locations.

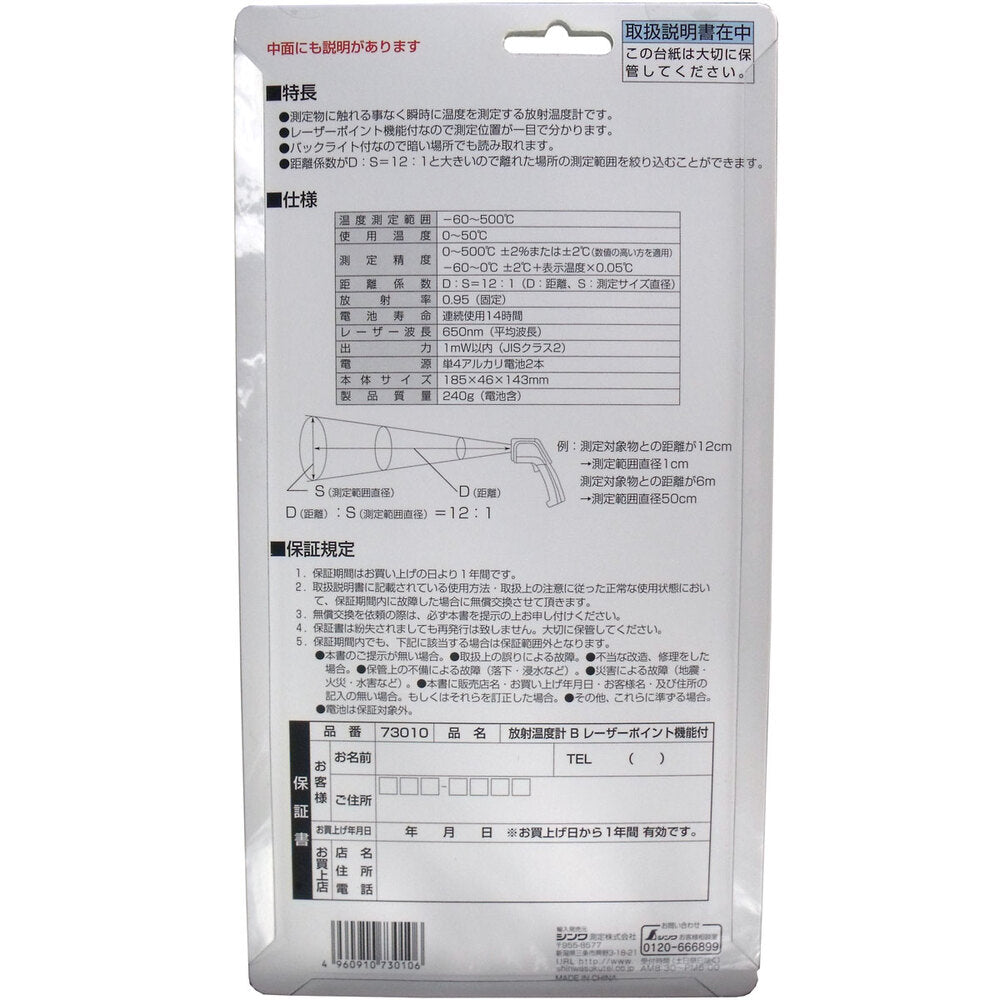

・All objects emit infrared rays, but even if the object has the same temperature, the proportion of infrared rays emitted varies depending on the object being measured. This product is set to an emissivity of 0.95, which is the most widely used for various purposes. *Emissivity may vary slightly depending on the object's measurement temperature, surface condition, material, etc. [Specifications]
Temperature measurement range: -60 degrees to +500 degrees
Operating temperature: 0 to 50 degrees
Measurement accuracy: 0 to 500 degrees: ±2% or ±2 degrees (the higher value applies), -60 to 0 degrees: ±2 degrees + display temperature x 0.05 degrees
Distance factor: D:S = 12:1 (D: distance, S: measurement size diameter)
Emissivity...0.95 (fixed)
Battery life: 14 hours of continuous use
Laser wavelength: 650nm (average wavelength)
Output: Within 1mW (JIS class 2)
Power supply: 2 AAA alkaline batteries
Body size: 185 x 46 x 143 mm
Product weight...240g (including battery) [Caution]
-Instruction manual included.
- Please read the instructions for use carefully and use correctly.
<Warning>
・Do not look into the laser light or point it at other people. Direct exposure to the laser light may cause loss of vision.
- Keep out of reach of children and do not allow them to use it.
