Nippei Removal Tool Tie Rod End Lifter Large TR-25 1 pc
Nippei Removal Tool Tie Rod End Lifter Large TR-25 1 pc
Regular price
¥15,860
Regular price
Sale price
¥15,860
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

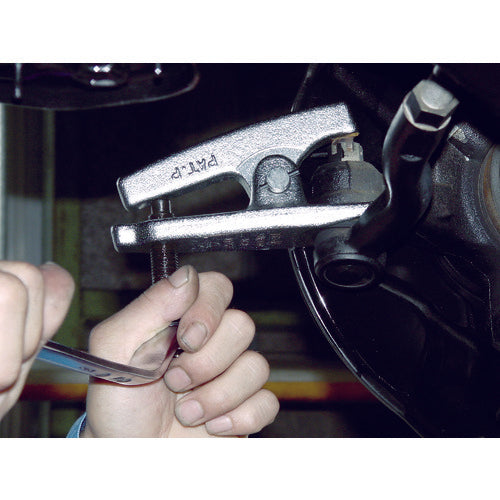

Catalog number: TR-25 Features: ●The ball joint of the tie rod can be easily removed by tightening the bolt using the principle of leverage. ●For removing the ball joint of the tie rod end from light vehicles to 4-ton vehicles. Specifications: ●Total length (mm): 152 ●Total width (mm): 60 ●Drive socket size (mm): 19 (hexagonal) ●Stroke length (mm): 0-60 ●Tip width (mm): 22 ●Fork width (mm): 22 ●Maximum opening height (mm): 55 ●Body dimensions (mm): 152 x 85 x 60 ●Compatible vehicles: 2-ton and 4-ton vehicles ●Bolt total length (mm): 97 ●Bolt diameter (mm): M16 x P1.5 ●Stroke (mm): 32 ●For removing ball joints Material/Finish: ●Steel Caution: ●Apply oil or grease to each sliding part when working. ●Please wear protective equipment.
