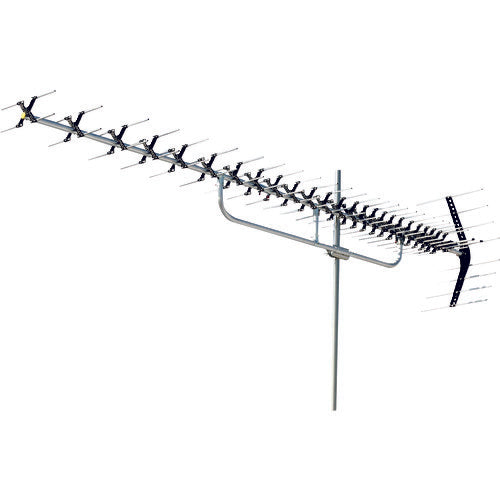

Nippon Antenna UHF high performance antenna for terrestrial digital broadcasting 27 elements AU27LX 1 unit

Catalog number: AU27LX Features: ● A high-gain UHF (digital terrestrial) antenna suitable for areas with weak radio waves. ● For receiving horizontal and vertical polarized waves. ● The power supply section uses a screw type (F type). Specifications: ● External dimensions length (mm): 2595 ● External dimensions width (mm): 400 ● External dimensions height (mm): 534 ● High-performance UHF antenna for terrestrial digital broadcasting, 27 elements ● Receiving channels (ch): 13-34 ● Number of elements: 27 ● Operating gain (dB): 12.6-14.4 ● Impedance (Ω): 75 ● Voltage standing wave ratio (below): 2.5 ● Half-width (°): 26-30 ● Front-to-back ratio (dB): 18-30 ● Wind load (N (kgf)): 327.7 (33.4) ● Suitable mast diameter (mm): 22-50 Set contents/accessories: ● Waterproof cap x 1 ● F-type connector (for 5C) x 1
