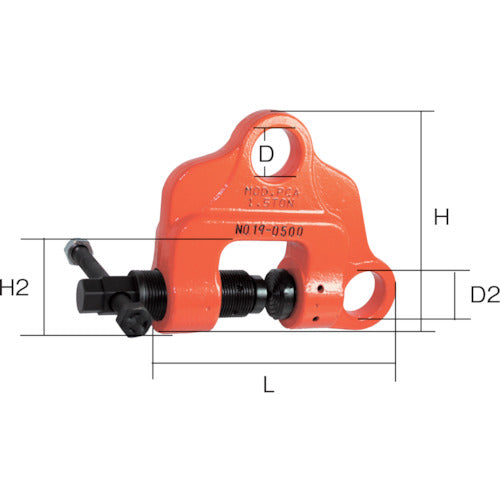

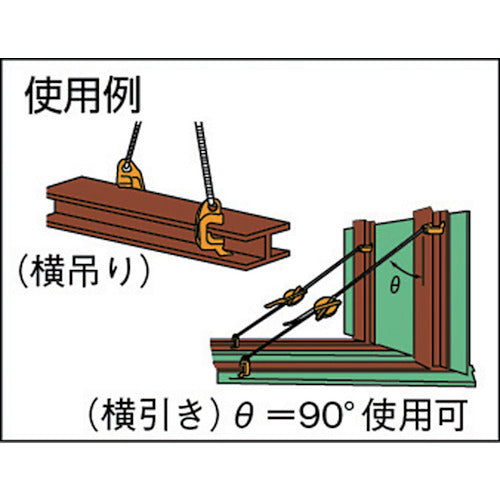

Catalog number: PCA-075 Features: ●Versatile type that can be used for vertical hanging, horizontal hanging, and horizontal pulling. ●Automatic tightening structure makes it very effective for lifting objects with slopes such as I-beams. ●The screw head has a hexagonal head for ratchet spanners. Applications: ●For lifting, pulling, and fixing pieces of steel materials. Specifications: ●Basic load capacity (t): 0.75 ●Clamping range (mm): 3-22 ●Dimensions (mm) D: 28 ●Dimensions (mm) D2: 28 ●Dimensions (mm) H: 129 ●Dimensions (mm) H2: 60 ●Dimensions (mm) L: 151 ●Height (mm): 129 ●Width (mm): 151 Caution: ●Use two units as a set for horizontal and vertical hanging operations.
