日本クランプ(株)

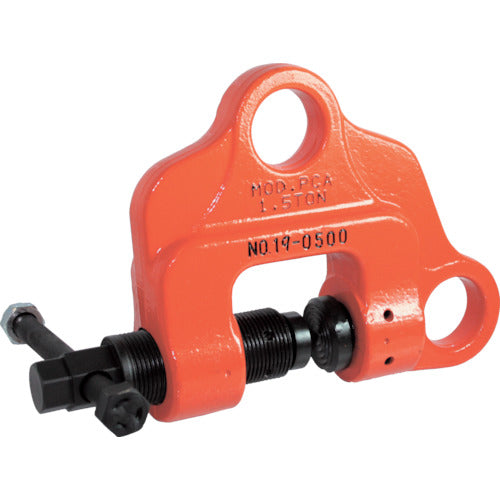

Nippon Clamp Screw-type universal clamp 3.5 PCA-3.5 1 unit
Nippon Clamp Screw-type universal clamp 3.5 PCA-3.5 1 unit
Regular price
¥98,406
Regular price
Sale price
¥98,406
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

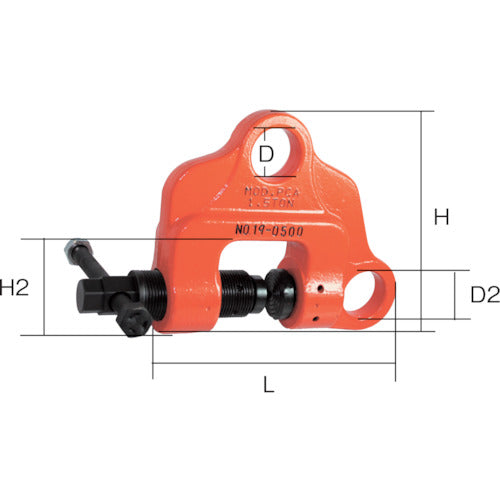

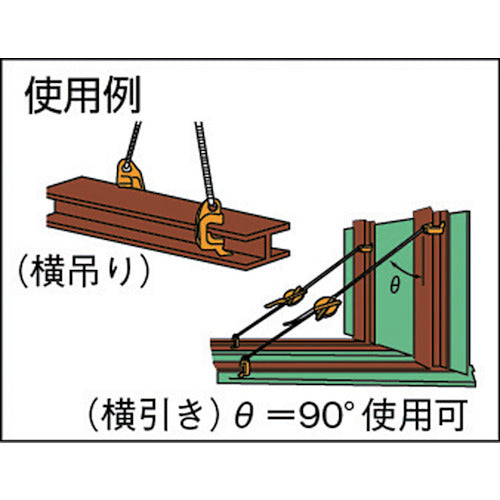

Catalog number: PCA-3.5 Features: ●Versatile type that can be used for vertical hanging, horizontal hanging, and horizontal pulling. ●Automatic tightening structure makes it very effective for lifting objects with slopes such as I-beams. ●The screw head has a hexagonal head for ratchet spanners. Applications: ●For lifting, pulling, and fixing pieces of steel materials. Specifications: ●Basic load capacity (t): 3.5 ●Clamping range (mm): 9-55 ●Dimensions (mm) D: 45 ●Dimensions (mm) D2: 45 ●Dimensions (mm) H: 170 ●Dimensions (mm) H2: 81 ●Dimensions (mm) L: 237 ●Height (mm): 170 ●Width (mm): 237 Caution: ●For horizontal and vertical hanging work, use two units as a set.
