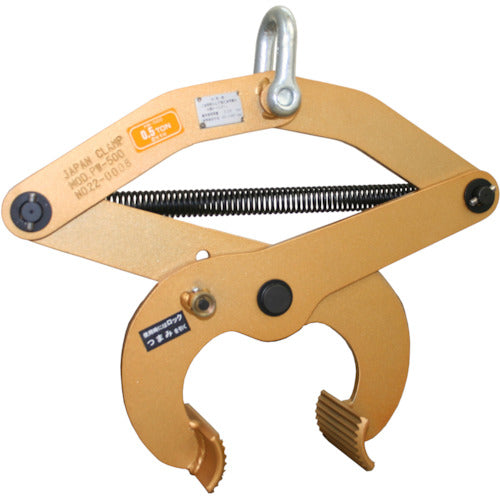

Nippon Clamp PW-type Lifting Clamp 0.5t (2 units) PW-500 1 set

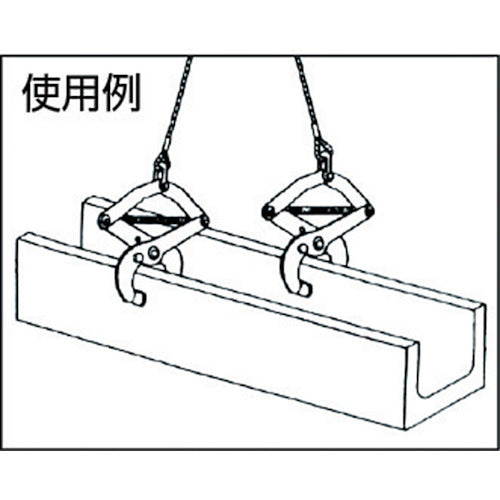

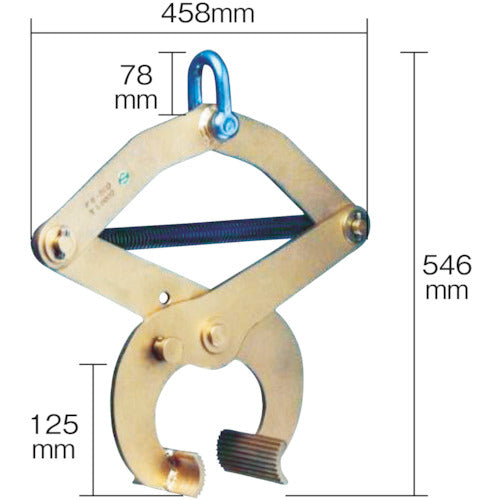

Catalog number: PW-500 Features: ●Large effective dimensions, ideal for lifting reinforced concrete, long U-shaped and L-shaped structures. ●When unloaded, the clamp arm of this machine opens due to the stopper structure, so it is very convenient that one person can set up two units at the same time. ●After installing the clamp, pull the stopper and the teeth will automatically bite into the concrete due to the lock spring, maintaining the lifting position, so you can do the slinging work by yourself. ●To remove, press the upper hinge plate from above and the clamp arm will automatically lock in the open inch position. Applications: ●U-shaped gutter lifting. Specifications: ●Basic load capacity (t): 0.5 (0.25 x 2) ●Clamping range (mm): 40 to 160 ●Dimensions (mm) D: 78 ●Dimensions (mm) H: 125 ●Dimensions (mm) H2: 546 ●Dimensions (mm) L: 458 ●Lifting secondary concrete products
