Nippon Clamp, 1.0t AST-1, special clamp for lifting steel beams, 1 unit

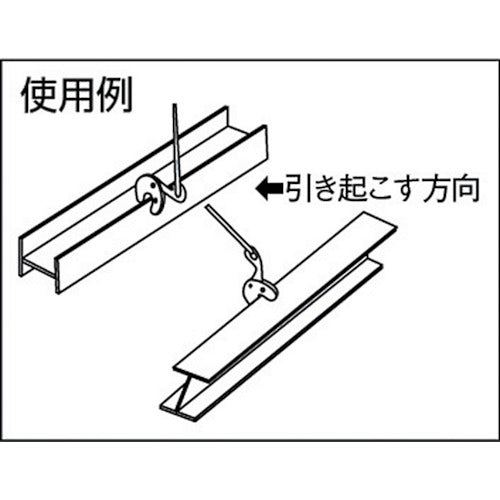

Catalog number: AST-1 Features: ●Ideal for moving, flipping, loading and unloading H-shaped steel and I-shaped steel, lifting and stacking beams and structures. ●Also suitable for high-impact tombo (flip) work. Applications: ●Transportation of shaped steel such as H-shaped steel, I-shaped steel, and angle steel. Specifications: ●Basic load capacity (t): 1.0 ●Clamping range (mm): 3-24 ●Dimensions (mm) D: 60 ●Dimensions (mm) H: 280 ●Dimensions (mm) H2: 88 ●Dimensions (mm) L: 193 ●Height (mm): 280 ●Width (mm): 193 ●For vertical lifting of shaped steel only Caution: ●This clamp is a simplified clamp for vertical lifting only, so it does not have a locking device. It tends to come off easily, especially when inching or subjected to impact, so please handle it with care.
