Nippon Clamp Horizontal Lifting Clamp 1.0t ECX-1 1 unit

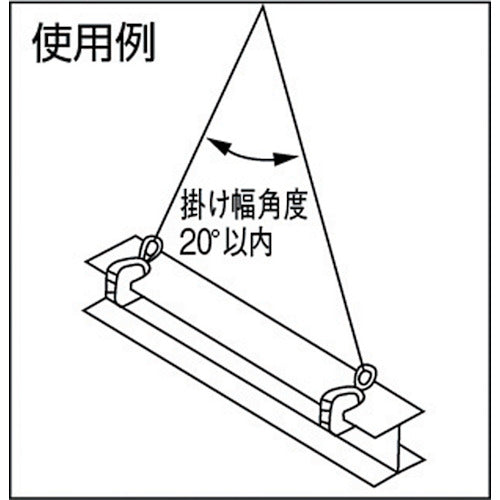

Catalog number: ECX-1 Features: ●Lightweight and compact clamp for horizontal lifting only. ●Easy to lift upright. ●Clamp with lock spring, will not come off even when unloaded. Applications: ●Lifting and transporting shaped steel. Specifications: ●Basic load capacity (t): 1.0 ●Clamp range (mm): 3-22 ●Dimensions (mm) D: 45 ●Dimensions (mm) H: 110 ●Dimensions (mm) H2: 53 ●Dimensions (mm) L: 116 ●Height (mm): 110 ●Width (mm): 116 ●With lock spring ●For horizontal lifting only ●For two-point lifting Caution: ●Use this clamp only in the specified direction. It cannot be used in any other direction because the cam "force" will not be generated and there is a risk of it coming off. ●Use two-point lifting for lifting long objects (over 2m) and make sure to install the clamp in the same direction. ●When lifting a structure, use a balance to ensure that the lifting angle is 0° and lift the structure at a width angle of 20° or less.
