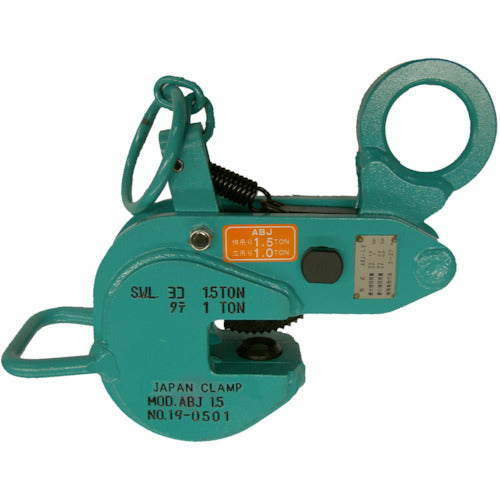

Nippon Clamp Horizontal/Vertical Hanging Combined Clamp ABJ-0.75 1 unit

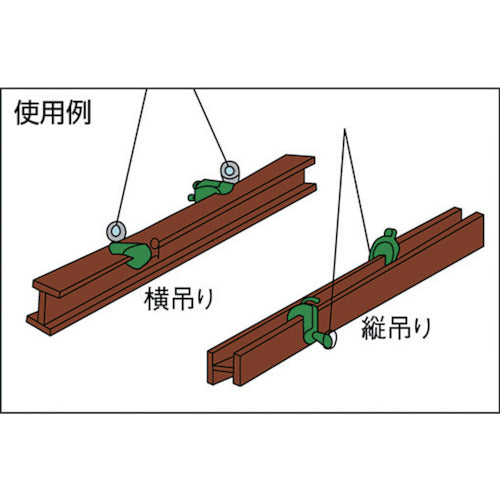

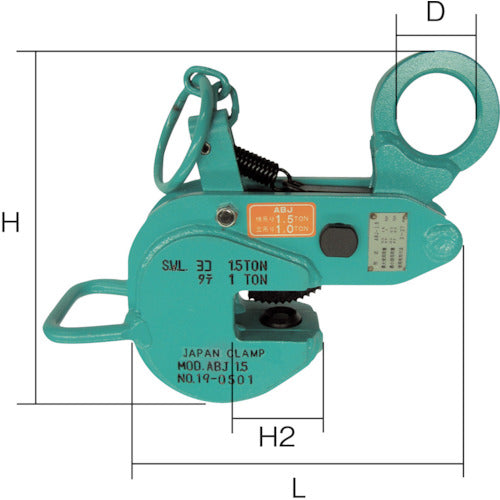

Catalog number: ABJ-0.75 Features: ●Can be inverted and can be hung vertically as is. ●Capacity has been greatly increased. (The size is almost the same as conventional horizontal hanging clamps, but the horizontal hanging capacity is 50% higher.) Applications: ●For erecting and transporting H-shaped steel, etc. Specifications: ●Basic load capacity (t) horizontal: 0.75 ●Basic load capacity (t) vertical: 0.5 ●Clamp range (mm): 3-23 ●Dimensions (mm) D: 45 ●Dimensions (mm) H: 197 ●Dimensions (mm) H2: 51 ●Dimensions (mm) L: 183 ●Basic load capacity (t): Horizontal 0.75, Vertical 0.5 ●Dimensions (mm) t: 16 ●Height (mm): 197 ●Width (mm): 183 ●With safety lock ●For two-point hanging Caution: ●Always use two units as a set to hang from the center of gravity.
