Nippon Clamp, 1t FX-1, special hook for lifting roofing plate, 1 piece
Nippon Clamp, 1t FX-1, special hook for lifting roofing plate, 1 piece
Regular price
¥30,096
Regular price
Sale price
¥30,096
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

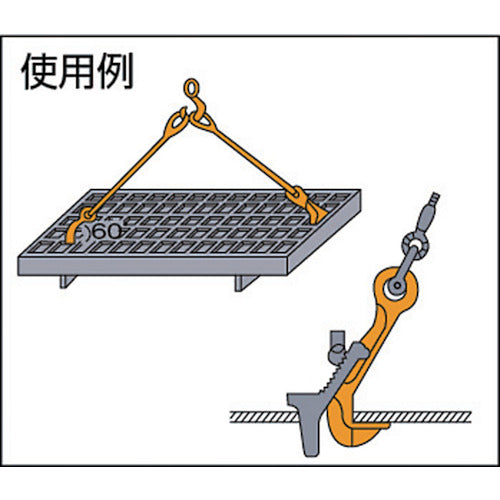

Catalog number: FX-1 Features: ●An anti-slip device is provided on the back of the hook. ●Large capacity and one-touch operation. ●The stopper can be fixed at any position by the ratchet mechanism. Uses: ●For lifting of lining plates only. Specifications: ●Basic load capacity (t): 1 ●Dimensions (mm) C: 29 ●Dimensions (mm) D: 28 ●Dimensions (mm) H: 203 ●Dimensions (mm) L: 41 ●Usable dimensions (mm) hole diameter: 40-60 ●Usable dimensions (mm) plate thickness: 2-28 ●With anti-slip device ●Use in pairs of 2 or more ●Hole diameter: 45mm or more (for plate thickness of 13mm or more) Material/Finish: ●Steel Caution: ●Always use in pairs of 2 or more. ●For plate thickness of 13mm or more, a hole diameter of 45mm or more is required.
