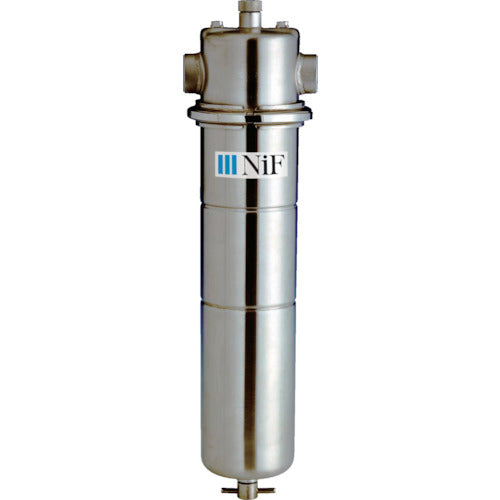

Nippon Filter Stainless steel housing SFH-02N-6-F-6-6 for 1 500mm O-ring FKM SFH-02N-6-F-6-6 1 unit

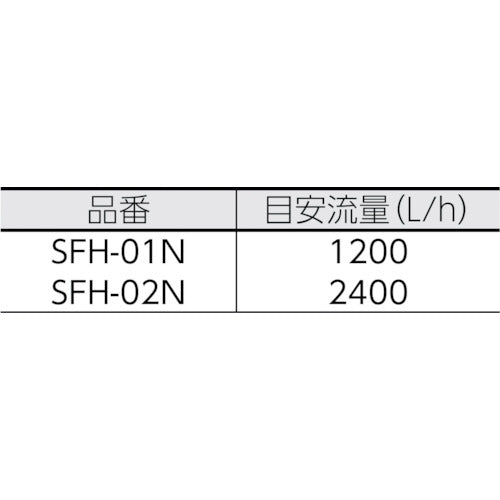

Catalog number: SFH-02N-6-F-6-6 Features: ●Made of SUS316 with excellent chemical resistance. ●No center shaft, making filter replacement easy even in tight spaces. ●Clamp type that can be tightened by hand. Applications: ●Filtering industrial water and well water. ●Filtering iron rust and turbidity. ●Filtering cleaning water. Specifications: ●Outer diameter (mm): 116 ●Height (mm): 700 ●Connection diameter: PF3/4 ●Width (mm): 116 ●Depth (mm): 116 ●Type: SUS316 housing ●Fitting interval (mm): 116 ●Estimated flow rate (L/h): 2400 ●Pressure resistance (MPa): 0.7 ●Pipe connection diameter: G (PF)3/4 ●Maximum operating temperature (℃): 95 ●Set pressure: 0.7MPa ●Design temperature: 95℃ ●SFH-01N compatible filter (sold separately): "CW-1L series" (250mm) ●Estimated flow rate: up to 1200L/h ●SFH-02N compatible filter (sold separately): "CW-2L series" (500mm) ●Estimated flow rate: up to 2400L/h ●Maximum operating pressure: 0.7MPa ●Single-loading type Material/Finish: ●Body: Stainless steel (SUS316) ●O-ring: Fluorine rubber (FKM)
