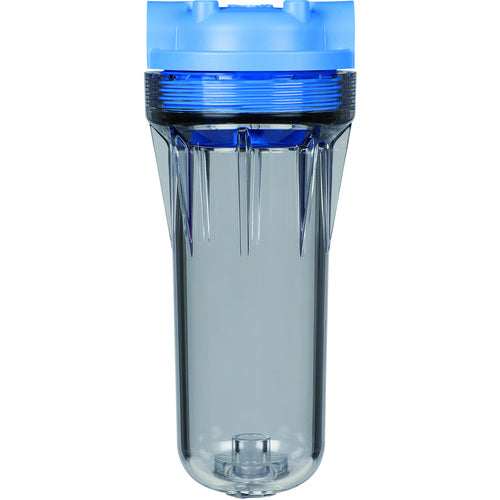

Nippon Filter Filter Housing "NFH-A-10-E" Transparent 250mm 1 piece O-ring: EPDM NFH-A-10-E 1 unit

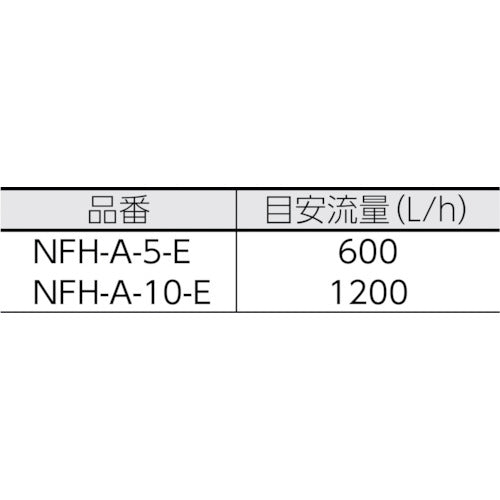

Catalog number: NFH-A-10-E Features: ●Transparent type that allows you to check the filtration status. Applications: ●Filtering industrial water and well water. ●Filtering iron rust and turbidity. ●Filtering cleaning water. Specifications: ●Outer diameter (mm): 136 ●Height (mm): 319 ●Connection diameter: Rc3/4 ●Width (mm): 136 ●Depth (mm): 136 ●Fitting interval (mm): 132 ●Estimated flow rate (L/h): 1200 ●Pressure resistance (MPa): 0.5 ●Pipe connection diameter: Rc3/4 ●Filtration flow rate (L/min): 20 ●Compatible filters: CW, EC, CCWN, FSG, FHG, YCC, FCC, SCM ●Set pressure: 0.5MPa ●Design temperature: 55℃ Material/Finish: ●Body: Synthetic resin ●O-ring: EPDM ●Head: Polypropylene Caution: ●Do not use in structures (applications) that involve sudden pressure increases or decreases. ●Do not use in environments where UV deterioration or freezing damage may occur, such as outdoors. ●Wipe or clean with neutral detergent or solvent may cause cracks or damage. Be sure to wipe or wash with water. ●Filter cartridges from other manufacturers may not be able to be installed.
