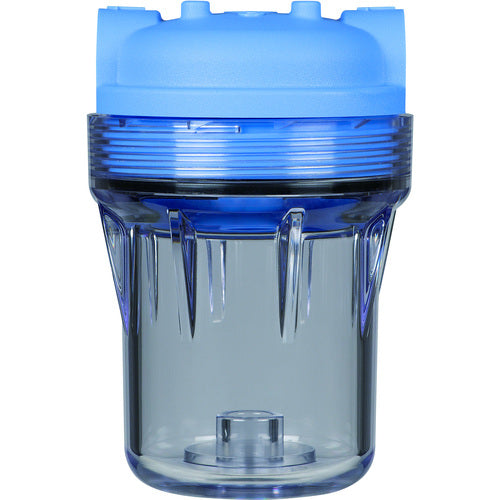

Nippon Filter Filter Housing "NFH-A-5-E" Transparent 125mm 1 piece O-ring: EPDM NFH-A-5-E 1 unit

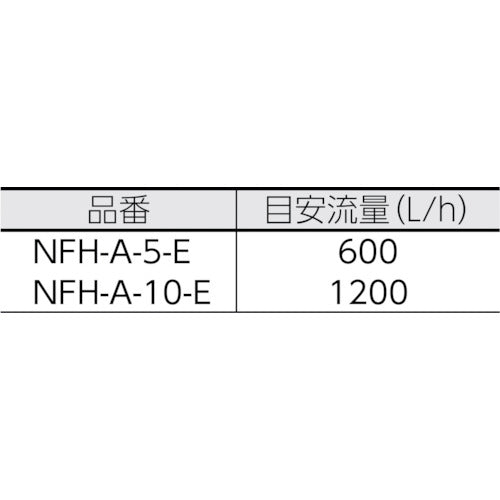

Catalog number: NFH-A-5-E Features: ●Transparent type that allows you to check the filtration status. Applications: ●Filtration of industrial water and well water. ●Filtration of iron rust and turbidity. ●Filtration of cleaning water. Specifications: ●Outer diameter (mm): 120 ●Height (mm): 182 ●Connection diameter: Rc1/2 ●Width (mm): 120 ●Depth (mm): 120 ●Fitting interval (mm): 112 ●Estimated flow rate (L/h): 600 ●Pressure resistance (MPa): 0.5 ●Pipe connection diameter: Rc1/2 ●Filtration flow rate (L/min): 10 ●Compatible filters: CW, EC, FSG, FHG, YCC, FCC ●Set pressure: 0.5MPa ●Design temperature: 55℃ Material/Finish: ●Body: Synthetic resin ●O-ring: EPDM ●Head: Polypropylene Caution: ●Do not use in structures (applications) that involve sudden pressure increases or decreases. ●Do not use outdoors or in environments where deterioration due to ultraviolet rays or damage due to freezing may occur. ●Wipe or clean with neutral detergent or solvent may result in cracks or damage. Be sure to wipe or wash with water. ●It may not be possible to install filter cartridges from other manufacturers.
