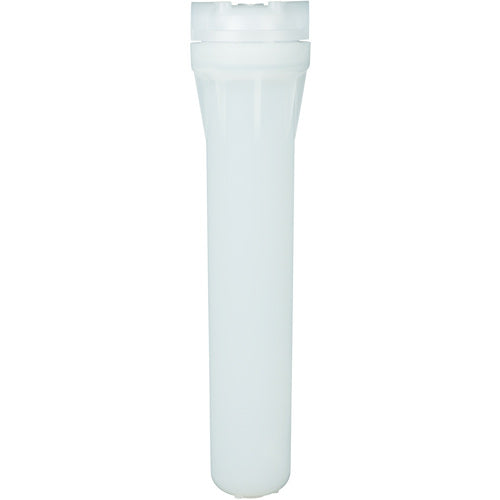

Nippon Filter Filter Housing "NFH-NPP-20-E" PP 500mm x 1 O-ring: EPDM NFH-NPP-20-E 1 unit

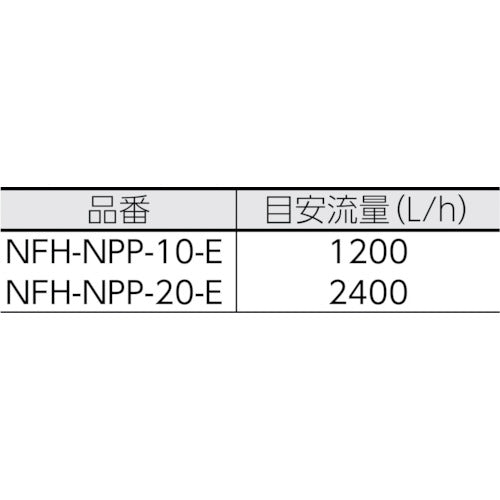

Catalog number: NFH-NPP-20-E Features: ● Made of polypropylene with excellent chemical resistance. Applications: ● Filtration of industrial water and well water. ● Filtration of iron rust and turbidity. ● Filtration of cleaning water. Specifications: ● Outer diameter (mm): 136 ● Height (mm): 565 ● Connection diameter: Rc3/4 ● Width (mm): 136 ● Depth (mm): 136 ● Fitting interval (mm): 132 ● Estimated flow rate (L/h): 2400 ● Pressure resistance (MPa): 0.5 ● Pipe connection diameter: Rc3/4 ● Filtration flow rate (L/min): 40 ● Compatible filters: CW, EC, CCWN, FSG, FHG, YCC, FCC ● Set pressure: 0.5MPa ● Design temperature: 55℃ Material/Finish: ● Body: Polypropylene (PP) ● O-ring: EPDM Caution: ● Do not use in structures (applications) that involve sudden pressure increases or decreases. ●Do not use outdoors or in environments where deterioration due to ultraviolet rays or damage due to freezing may occur. ●Wipe or clean with neutral detergent or solvent may result in cracks or damage. Be sure to wipe or wash with water. ●It may not be possible to install filter cartridges from other manufacturers.
