Nippon Inorganic Dust Clean Filter 500 x 500 x 15 DS-400-22-REA-15 1 piece

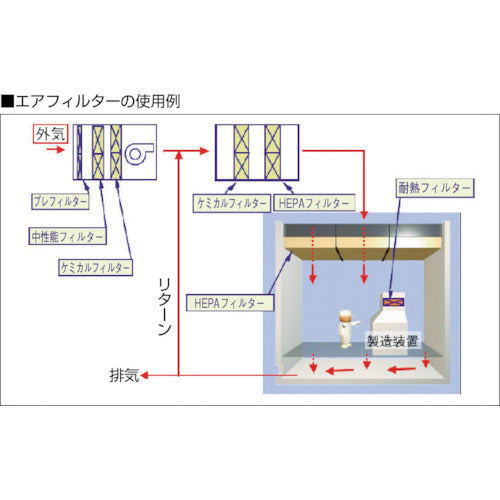

Catalog number: DS-400-22-REA-15 Features: ● A coarse dust filter that uses polyester filter media with excellent strength and is easy to handle. ● A filter that is 76 to 82% according to JIS B9908 type 3 (mass method). Applications: ● Buildings, general air conditioning, clean rooms, etc. ● Building air conditioning. For general industrial air conditioning. As a pre-filter for HEPA filters. Specifications: ● Collection efficiency (%): 76 ● Rated air volume (［［M3］］/min): 37 ● Initial pressure loss (Pa): 59 ● Final pressure loss (Pa): 196 ● Body dimensions (mm) length x width x depth: 500 x 500 x 15 ● Continuous operating temperature: 60°C or less ● Operating humidity: 95% RH or less ● A filter that is 76 to 82% according to JIS B9908 type 3 (mass method). ● Panel type Material/Finish: ● Filter media: Polyester
