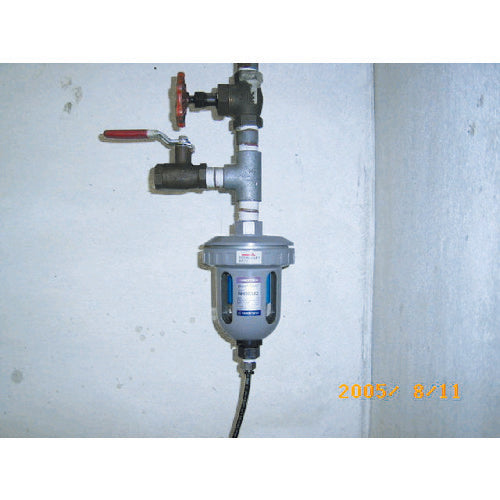

Nippon Seiki Drain Trap NH-503J2 1 piece

Catalogue number: NH-503J2 Features: ● A magnet is built into the float, and the magnetic force ensures automatic drainage. ● Float type, so there is no unnecessary air consumption. ● Automatically drains accumulated drain. Applications: ● Automatically drains accumulated drain. Specifications: ● Operating pressure (MPa): 0.15 to 0.98 ● Drain discharge amount (cm3/time): 10 ● Connection port size: Rc1/2 ● Width (mm): 100 ● Depth (mm): 100 ● Height (mm): 148 ● Fluid used: Air ● Fluid temperature (℃): 5 to 60 ● Fluid temperature: 5 to 60℃ ● Drain discharge method: Float type auto drain
