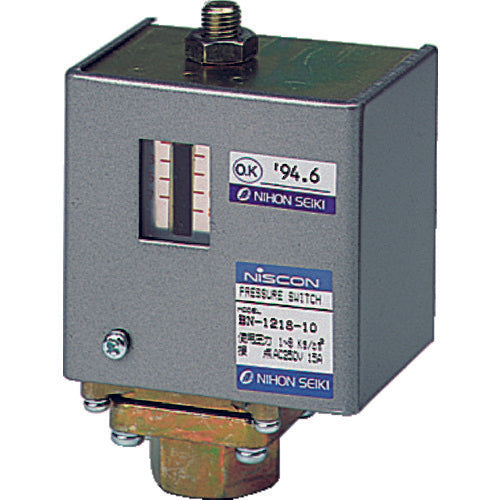

Catalog number: BN-1218-10 Features: ● Large contact capacity and simple structure. ● Signal is issued when the set pressure is reached. Specifications: ● Set pressure (MPa): 0.10-0.8 ● Connection port size: G3/8 ● Operating pressure (MPa): 0-0.8 ● Pressure resistance (MPa): 1 ● Operating fluid: Air ● Fluid temperature (℃): 5-60 ● Type: Diaphragm ● Fluid temperature: 5-60℃
