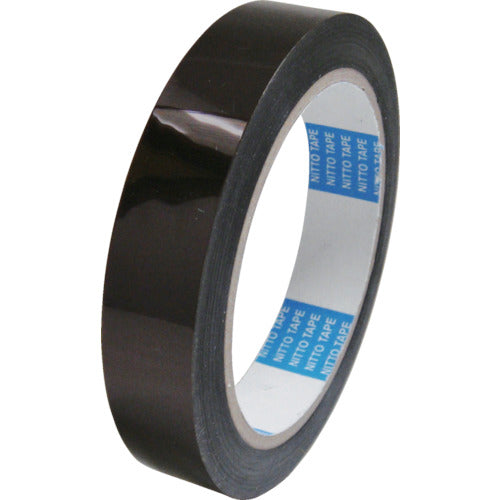

Nitto Denko America Insulating Tape Kapton Tape P-222 Base Material Thickness 50μ x 12.7mm x 33m P222X1/2 1 Roll

Catalog number: P222X1/2 Features: ●Excellent insulation and solvent resistance, thin and easy to fit. ●Excellent abrasion resistance and tear resistance. ●Silicone adhesive is used, and can be peeled off cleanly even after heating. Applications: ●Binding of high heat resistant electric wires. ●Insulation of high frequency motors and tractor motors. ●Exterior insulation of small bobbin coils. ●Binding of magnet wire. ●Masking of circuit boards during wave soldering. ●Masking during vacuum deposition and sputtering, and temporary fixing of electronic components Specifications: ●Color: Urban ●Width (mm): 12.7 ●Length (m): 33 ●Thickness (mm): 0.095 ●Adhesive strength (N/10mm): 2.8 ●Tensile strength (N/10mm): 124 ●Elongation (%): 90 ●Continuous use temperature (℃): 180 ●Heat resistance temperature (℃): 260°/180° (during continuous use) ●UL standard H type (180℃) Material/Finish: ●Base material: Kapton film ●Adhesive: Silicone-based
