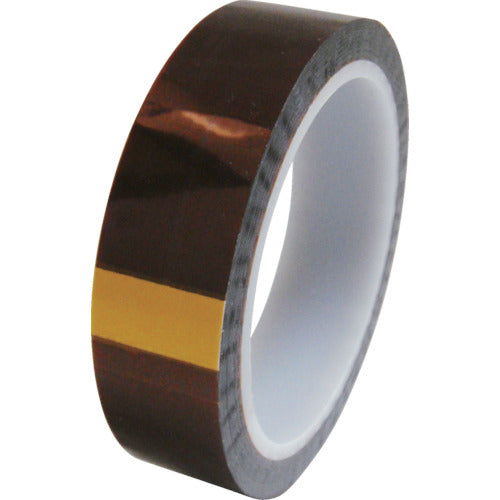

Nitto Denko America Insulating Tape Kapton Tape P-224 Base Material Thickness 25μ x 19mm x 33m P224X3/4 1 Roll

Catalog number: P224X3/4 Features: ●Excellent insulation and solvent resistance, thin and easy to fit. ●Excellent abrasion resistance and tear resistance. ●Adhesive is solvent resistant and uses a thermosetting acrylic adhesive that is less likely to generate outgassing. Applications: ●Binding of high heat resistant electric wires. ●Insulation of high frequency motors and tractor motors. ●Exterior insulation of small bobbin coils. ●Binding of magnet wire. ●Insulation and bundling of electronic components used in computers, communication equipment, aircraft, satellites and military equipment. Specifications: ●Color: Urban ●Width (mm): 19 ●Length (m): 33 ●Thickness (mm): 0.074 ●Elongation (%): 85 ●Continuous use temperature (℃): 155 ●Adhesive strength: 4.0N/10mm ●Tensile strength: 63N/10mm ●UL standard F type (150℃) Material/Finish: ●Base material: Kapton film ●Adhesive: Acrylic
