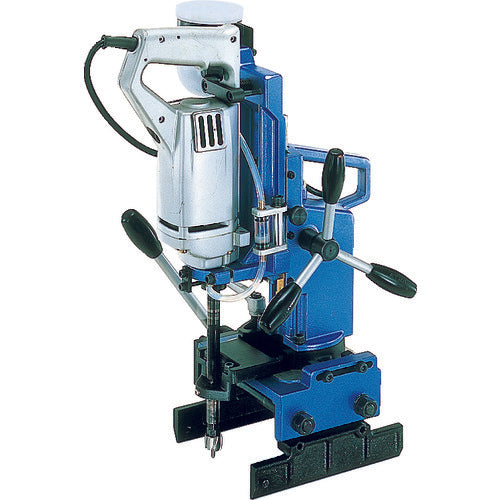

Nitto Atora Mini Ace AMT-18 1 unit

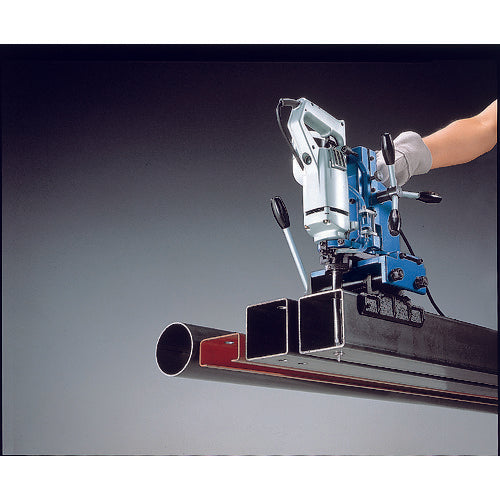

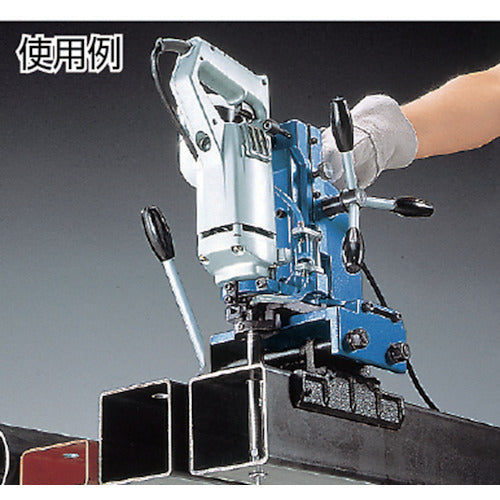

Catalog number: AMT-18 Features: ● When processing lip channel steel (C channel), it is possible to drill purlin and furring strip holes up to 150 mm. ● It is easy to drill through holes in square pipes of 100 mm. (Drilling sizes φ15, φ17, φ18) (AMT-18) ● Slide mechanism. (Maximum 75 mm pitch) (AMT-18) ● Type for simultaneously drilling two holes. The pitch drilling width can be changed between 40 and 60 mm. (AMW-22) Applications: ● Purlin and furring strip holes for C channel 150 mm. Specifications: ●Maximum drilling capacity (mm): 18 ●Maximum plate thickness (mm): 6 ●Stroke (mm): 120 ●Power supply (V): AC100 ●Power cord length (m): 2.4 ●No-load speed (min-1): 1100 ●Drilling capacity (mm): 11.5-18 ●Vice capacity (mm): 50-150 ●Power consumption (W): 510 ●Rated current (A): 5.5 ●Height (mm): 476 ●Total length (mm): 309 ●Maximum diameter of twist drill (mm) ●Power supply: AC100V ●Power cord length: 2.4m (AMT-18), 3m (AMW-22) Set contents/accessories: ●2 mini broaches ●Mini broach spanner ●Hexagonal wrench ●Cutting oil 0.5L
