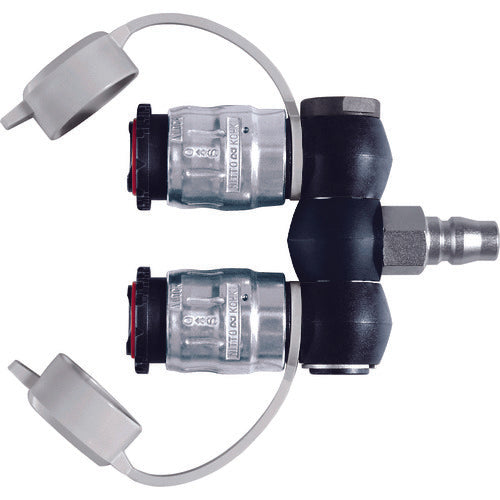

Nitto Air Branch Pipe Rotary Type Full Blow Line Coupler FBH-RT 1 pc

Catalog number: FBH-RT Features: ●Multiple air outlet directions can be freely adjusted 360°. ●This is a full blow coupler with low pressure loss and large flow rate. ●Multiple air outlets can be taken out from one pipe at the same time. ●Air outlet direction can be freely adjusted 360°. ●Two-branch type (RT type) and three-branch type (RE type) can be selected according to the work. ●Low pressure loss and large flow rate. Compared to the rotary line coupler RT type and RE type, the flow rate is increased by up to approximately 40 to 50%. ●When connecting and disconnecting, the valve is closed, and the internal pressure is zero, allowing smooth operation. ●When disconnecting, the residual pressure on the plug side is exhausted, eliminating unpleasant noise and recoil. ●Equipped with a separation prevention mechanism to prevent unexpected separation. ●The valve can be opened and closed while still connected. Specifications: ● Maximum operating pressure (MPa): 1.5 ● Number of branches: 2 ● Inlet: 20PFF ● Operating temperature range (℃): -20℃ to +60℃ ● Color: Black ● Operating pressure: 1.5 ● Fluid used: Air ● Operating temperature range: -20 to 60℃ ● Valve structure: One-way opening and closing type ● Multiple air extraction directions 360° freely adjustable. ● Collective piping type of "full blow coupler" with low pressure loss and large flow rate. Material/Finish: ● Body: Zinc alloy ● Sealing rubber: Nitrile rubber (NBR)
