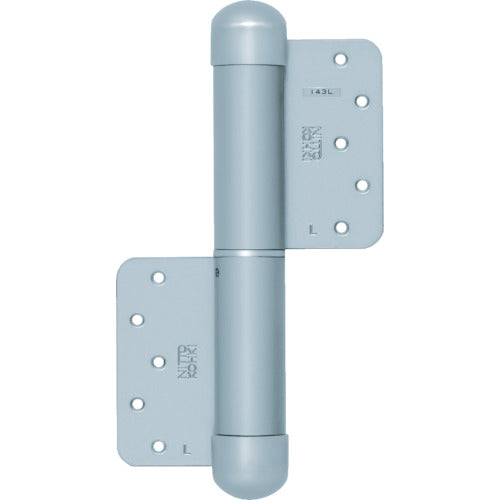

Nitto Auto Hinge PC Series 143R-T-PC 1 S

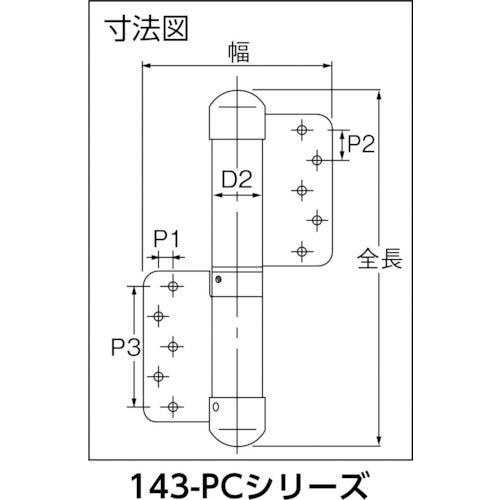

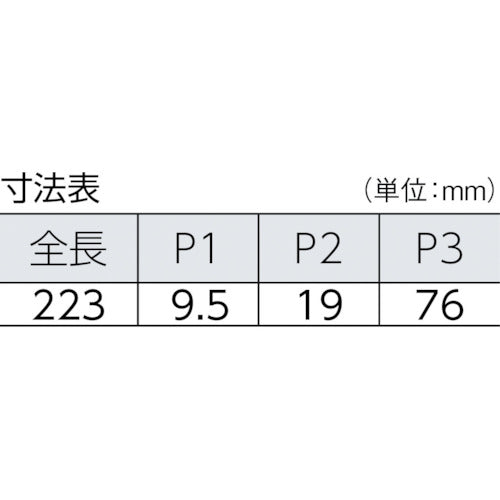

Catalog number: 143R-T-PC Features: *The unique actuator with temperature sensor keeps the door closing speed almost constant even if the ambient temperature changes. *Special surface treatment enhances rust and drip resistance, making it possible to use it outdoors. *The door closing speed can be adjusted freely with a screwdriver. *It can also be used on arch doors and doors without upper linings, where it is difficult to use other door closers. *Installation and handling are exactly the same as the hinge type 100 series and 200 series, so it is easy and hassle-free. Applications: *Suitable for outdoor use. Specifications: ● Total length (mm): 223 ● Width (mm): 120 ● Thickness (mm): 4 ● Number of screw holes: 10 ● Opening: Right-hand ● D2 (mm): 32 ● Surface treatment: Acrylic resin baked paint finish ● Installation method: Flat head screw M6 (sold separately) ● Applicable door weight: 60 kg or less ● Applicable door dimensions: (Width) 900 mm or less x (Height) 2100 mm or less x (Thickness) 30 mm or more ● With automatic temperature compensation function ● Drip-proof specifications ● No closer function ● Set contents: Top and bottom x 1 each ● JIS A1510-3 standard product Material / Finish: ● Steel Set contents / Accessories: ● Top and bottom x 1 each
