Nitto Auto Hinge Small Hinge 2000 Series 2210L 1 Piece

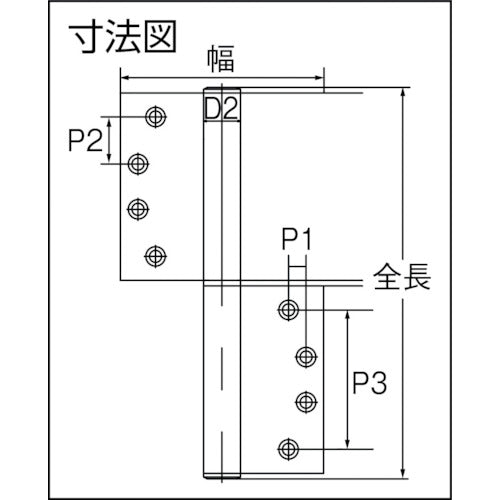

Catalog number: 2210L Features: ●The slim shape of the main body cylinder diameter of φ20 does not spoil the beauty of the door. ●The installation is surface-mounted, so it is easy to install and does not require digging or inserting. ●It has achieved a durability of 1 million times in repeated opening and closing durability tests in accordance with JIS standards. Applications: ●For indoor use. ●Applicable doors: Wood, aluminum, lightweight steel Specifications: ●Total length (mm): 212 ●Width (mm): 110 ●Thickness (mm): 3.5 ●Number of screw holes: 8 ●Opening: Left-handed ●D2 (mm): 20 ●Type: Indoor lightweight door, open hinge ●Surface treatment: Anodized ●Applicable door weight: 30kg or less ●Applicable door dimensions: (width) 800mm or less x (height) 2000mm or less x (thickness) 30mm or more ●No closer function ●Open hinge ●Applicable doors: Wood, aluminum, lightweight steel ●Applicable door size: Width 800mm or less, height 2000mm or less, thickness 30mm or more ●Applicable door weight: 30kg or less ●Usage environment temperature: -10 to 40 degrees Material/Finish: ●Aluminum Set contents/Accessories: ●8 flathead screws M5 x 16
