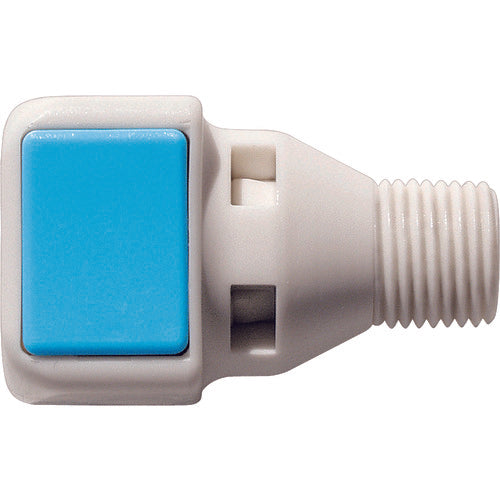

Nitto Cube Coupler Mating Size Rc1/8 (65138) SPC-10SM-BLU POM NBR 1 pc

Catalog number: SPC-10SM-BLU POM NBR Features: ● 5 color variations prevent piping connection errors. ● ● 5 color variations prevent piping connection errors. ● Made of resin, so it is ultra-lightweight. Compact design saves space. ● Connects simply by pushing. Disconnects with one touch of a button. ● Available in a lineup of types with built-in valves in both the plug and socket, and valveless types with reduced pressure loss. ● Available in a lineup of L-shaped plugs suitable for piping in small spaces. ● Disconnects by operating two buttons simultaneously, preventing unexpected disconnection. Applications: ● For ink piping and cooling water piping of commercial inkjet printers, and air piping of office equipment. Specifications: ● Pressure resistance (MPa): 1.5 ● Counterpart mounting size: Rc1/8 ● Fluid used: Air, water ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): -20 to +60 ● Mounting size: R1/8 ● Compatible coupler: Cube coupler ● Seal material: Nitrile rubber (NBR) ● Valve: Yes ● Material: Polyacetal resin (POM) ● Built-in valve: Yes ● Counterpart mounting screw size: Rc 1/8 ● Valve included ● Valve structure: Two-way opening and closing type, one-way opening and closing type, two-way open type ● Lineup includes valve built-in type and valveless type. ● Connect and disconnect with one action. ● Compact and lightweight resin type. Material/Finish: ● Body material: Polyacetal resin ● Seal: Nitrile rubber (NBR)
