Nitto Small Coupler Socket, Mating Mounting Size R1/8 (01307) MS-10SF BRASS NBR 1 pc

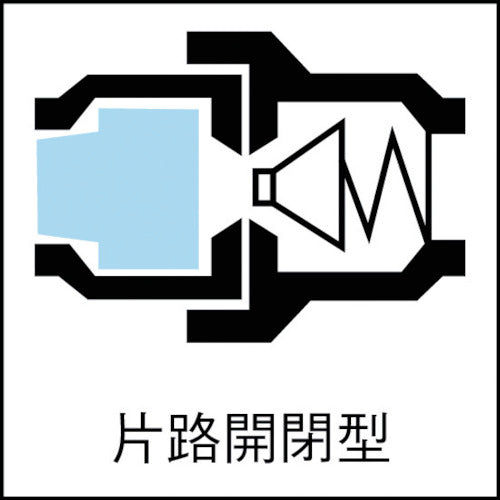

Catalog number: MS-10SF BRASS NBR Features: ● Compact type with a sleeve outer diameter of 14 mm and a valve mechanism on the socket. ● Suitable for fields where miniaturization and modularization are progressing. ● Compact type with a sleeve outer diameter of 14 mm and a valve mechanism on the socket. Suitable for fields where miniaturization and modularization are progressing. ● Plug and socket can be connected with one touch by simply pushing. ● Chrome-plated brass is used for the main body for corrosion resistance. Stable performance over a long period of time. ● A wide variety of mounting shapes (for female threads, male threads, hoses, manifolds) are available to accommodate a wide range of piping applications such as pneumatic equipment, scientific equipment, and medical equipment. ● Also available with a "tube fitter". Uses: ●For low pressure Specifications: ●Pressure resistance (MPa): 1.5 ●Mating mounting size: R1/8 ●Fluid used: air, water ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -20 to 80 ●Mating mounting screw size: R 1/8 ●One-way opening and closing type ●Compatible fittings: Nitto Kohki small coupler type ●Valve structure: One-way opening and closing type ●One-touch connection type that is lightweight and compact. ●Compatible with the trend toward modularization. Material/Finish: ●Body: Brass (chrome plated) Caution: ●When the socket and plug are separated, fluid will flow out from the plug side piping. Please be careful if the fluid used is water.
